Single 7ft by 4ft Tipping Trailer
$1,999.00
The Milk Bottle - Single axle 7ft x 4ft tipping trailer.
A solid, robust, reliable domestic trailer ideal for small loads. Easy to use and easy to park. Strong, and affordable, kick the tires, and it's good to go!
Add a cage or an H Frame to carry kayaks and camping gear for versatility. Add an extra tow ball for a bike rack addition.
This strong and versatile trailer will make any trailer trip an easy one!
Assembled with care by our team in NZ. Perfect for transporting various items: furniture shifts, garden clearance, tip trips, sports gear etc. This trailer is on the higher end of payload capacity that is currently available on the market, so you know you're in good hands.
Fully welded (not bolted together). Its 2.5mm checker plate floor and sides with wraps on the sides give it additional strength.
The cage gate and the forward and rear tailgates are easily removable to give more usage flexibility. Tailgates can be lowered with the cage still fitted. This model has lights on the outer edges, allowing longer loads and trips with front and rear tailgates lowered.
Features:
- Heavy-duty payload capacity of 750kg – pile it up high and heavy!
- Full tilt model for ease of unloading
- Multi-latches for extra safety
- Side running boards and mudguards that you can stand on when loading
- Side and rear pipes for tie-downs
- 14"" Wheels for increased stability when towing and additional payload.
Make it versatile. Add these on as Extras:

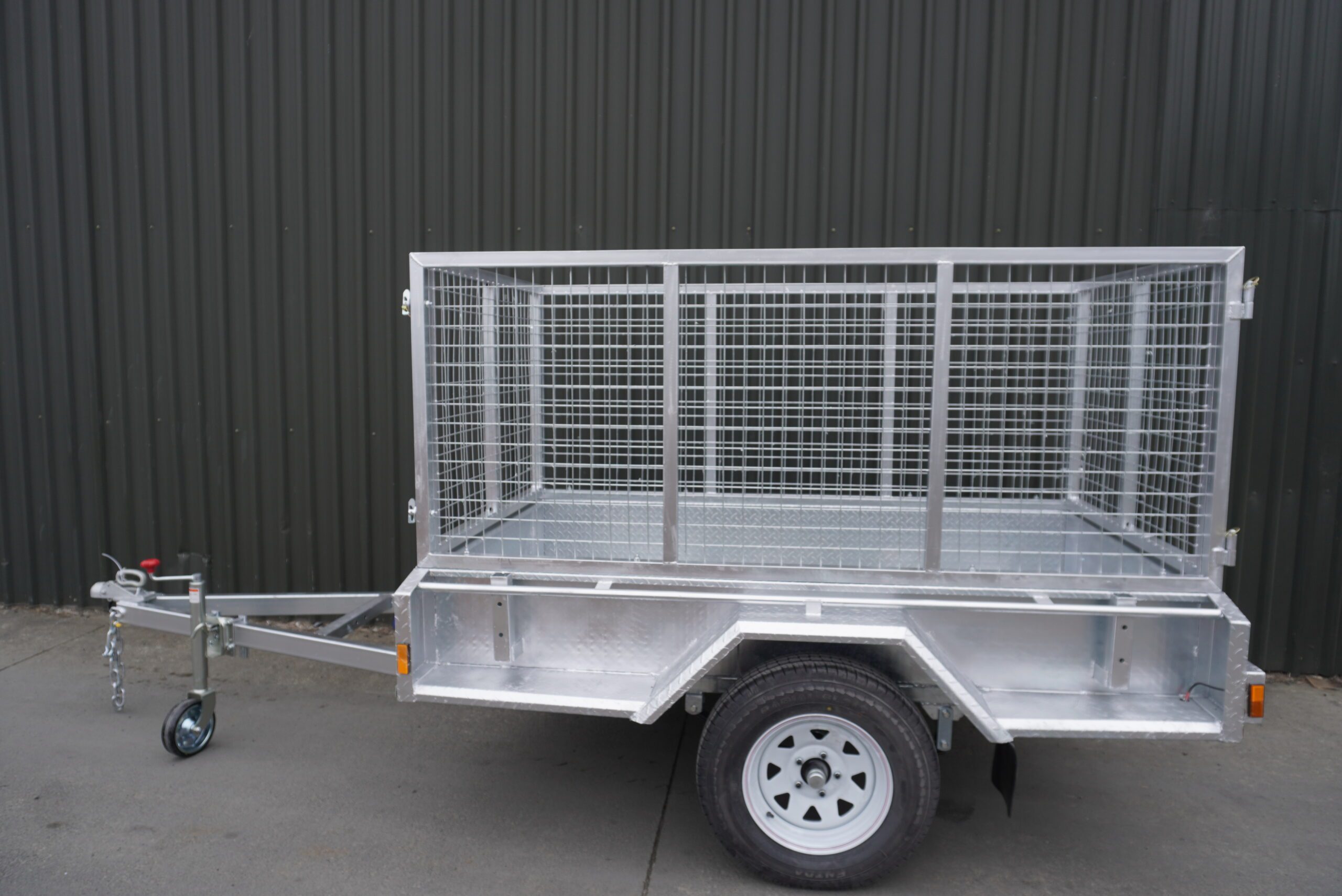

- Removable cage (900mm) with rear swinging gate for loading.
- Removable tarpaulin frame
- Additional tow ball for trailers for bike rack addition
(See Extras for add-on pricing and information).
- Lead time: Immediate
- Pick-up locations available
- Finance available
- Assembled in NZ
Order Now:
6 in stock (can be backordered)
6 in stock (can be backordered)
Technical Specifications
Axle | Single axle |
Overall Dimensions (mm) | |
Box Size (Internal) | 7ft by 4ft (2133mm x 1219mm) |
Draw bar length from the base of the tail gate | 1.8metres long - 1.4 metres (at the widest point) |
Full Welded Chasis | |
Tare Weight (Empty Trailer Weight) | 300kg |
Payload Capacity (Maximum Load Limit) | 750kg |
ATM Weight | 1050kg |
Floor and Sides Construction | 2.5mm checker steel plate with Standard 300mm Depth sides |
Trailer Box Side Height | 300mm |
Frame | |
Steel Thickness | 2.5 mm |
Surface Finish | Hot-dipped galvanised Steel |
Tow Ball Coupler | NZ and Australian standard 1 7/8" |
50mm Coupling | Can be supplied at extra cost |
Safety Chains | Standard 10cm |
Dual Coupling | Can be supplied at extra cost |
Wheels & Tyres | 165/70R-14 inch Tyre, Commercial |
Braked | No |
Mudguards | Yes |
Lights | LED Lights |
Reflectors | Back of the trailer, red and orange |
Electrical Details | Electrical plug standard 7 pin plug |
Jockey Wheel Included | Yes |
Tie Downs | Yes |
H Frame Holders | Yes |
Hinged / Removable Tail Gates | Yes |
Leaf Springs | 6 inch Slipper Leaf Spring |
Axle Style | Solid round axle |
Full Welded Chassis |
Other
Bearing Savers | NZ standard bearings |
Hydraulic Power Pack | |
Battery with solar charger or Anderson plug wired to car | |
Other features / details | |
Lead Time (when not in stock at location) |
East Tamaki: Immediate |
Other Add-Ons Available
- Mower bucket
- additional bike tow bar
- sliding doors
Warranty
Warranty | Full 3 year warranty |
Stock Locations
East Tamaki | Y |
Riverhead | Y |
Whangarei | Y |
Kerikeri | Y |
Hamilton | Y |
Whakatane | pick up orders only |
Delivery Fee
East Tamaki | None. Call us to arrange. |
Pukekohe | None. Call us to arrange. |
New Plymouth | $350 |
Hawkes Bay | $300 |
Riverhead | None. Call us to arrange. |
Whangarei | $200 |
Kerikeri | $250 |
Hamilton | $100 |
Whakatane | $200 |
Tauranga | $176 |
Taupo | $176 |
Rotorua | $175 |
