Tandem 10ft by 6ft
$4,699.00

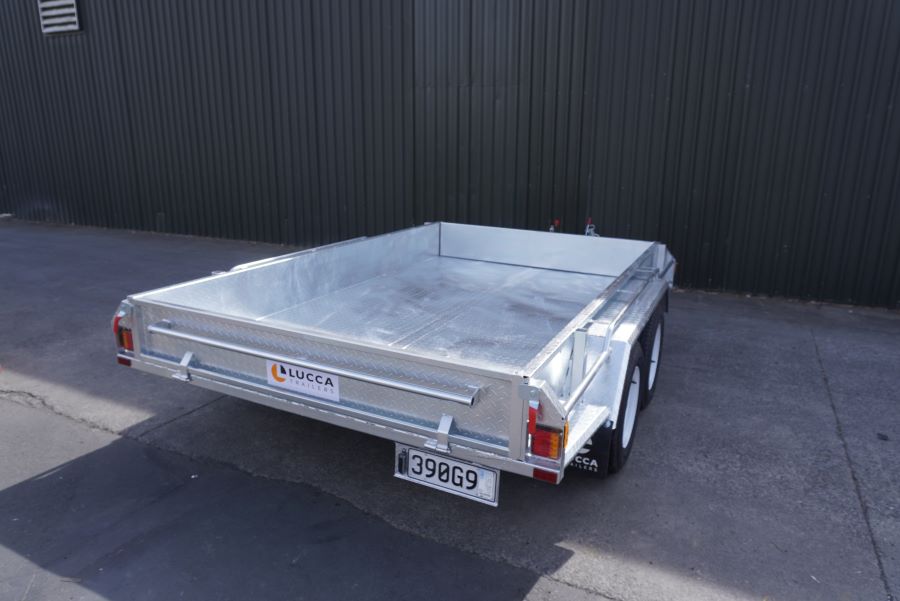

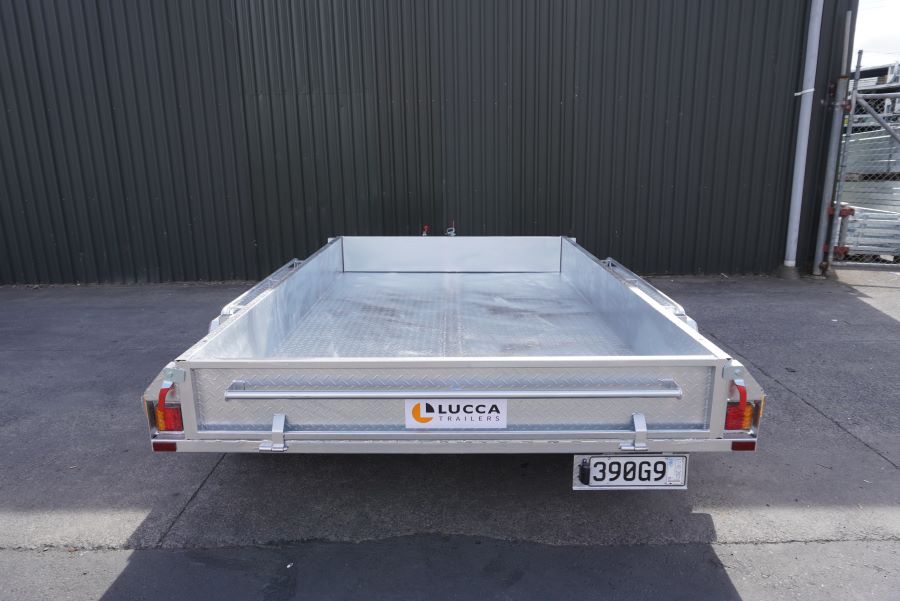

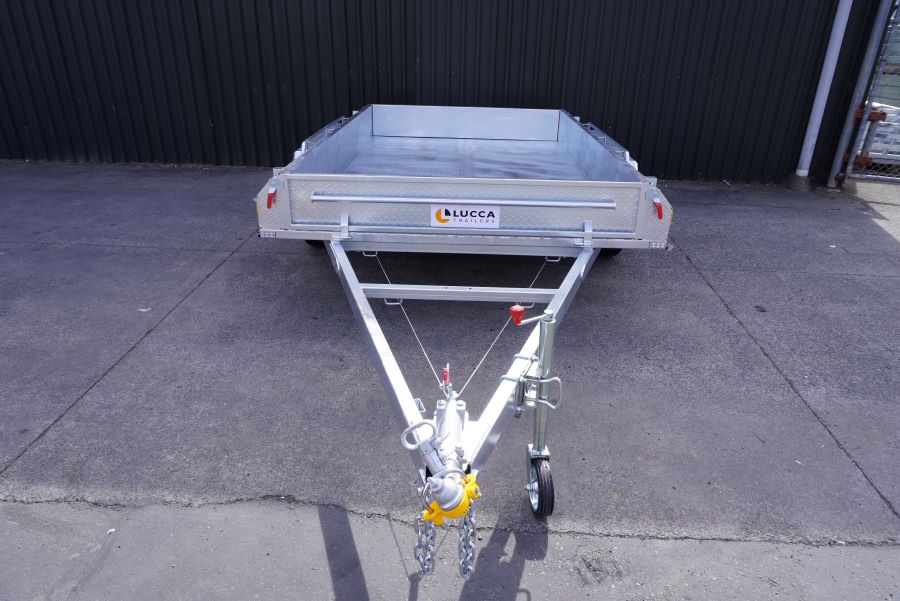

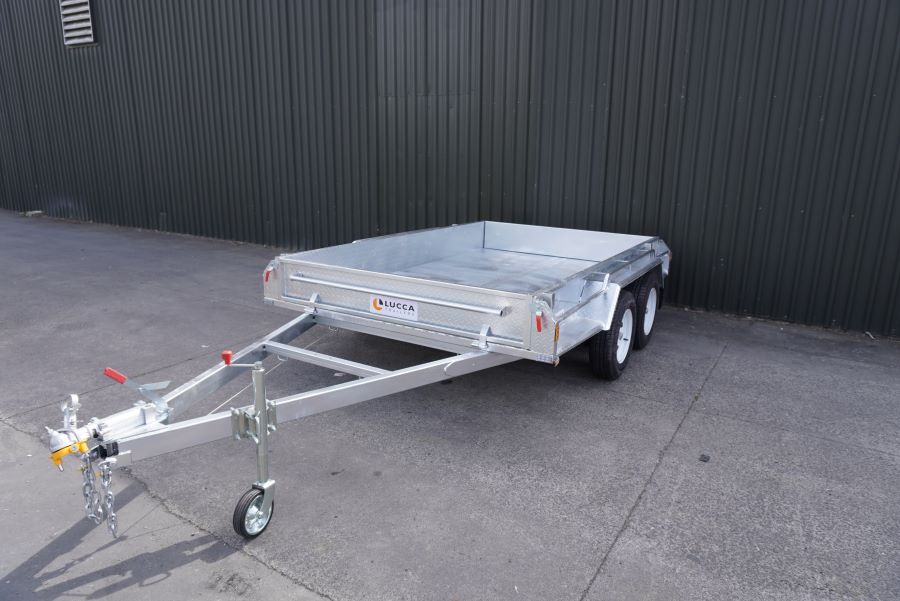

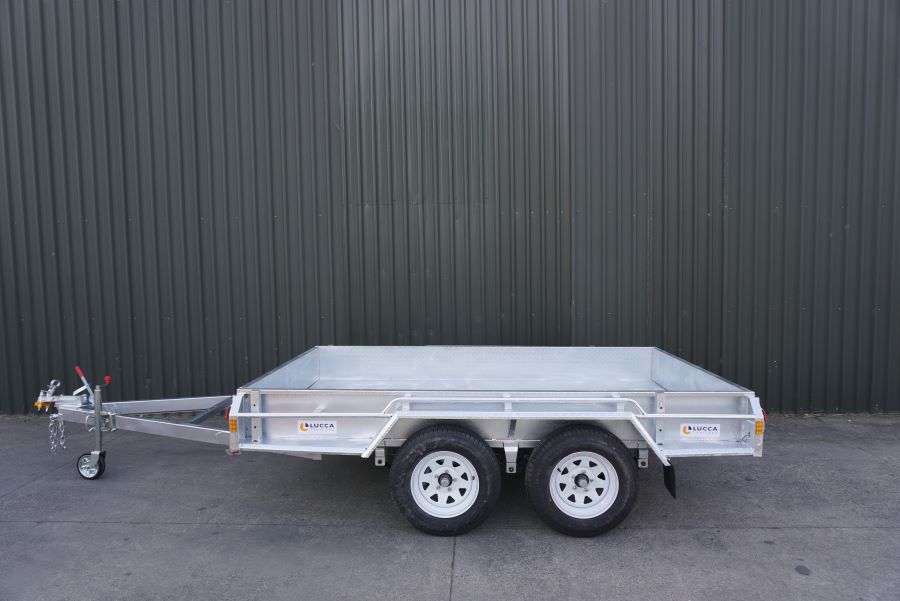

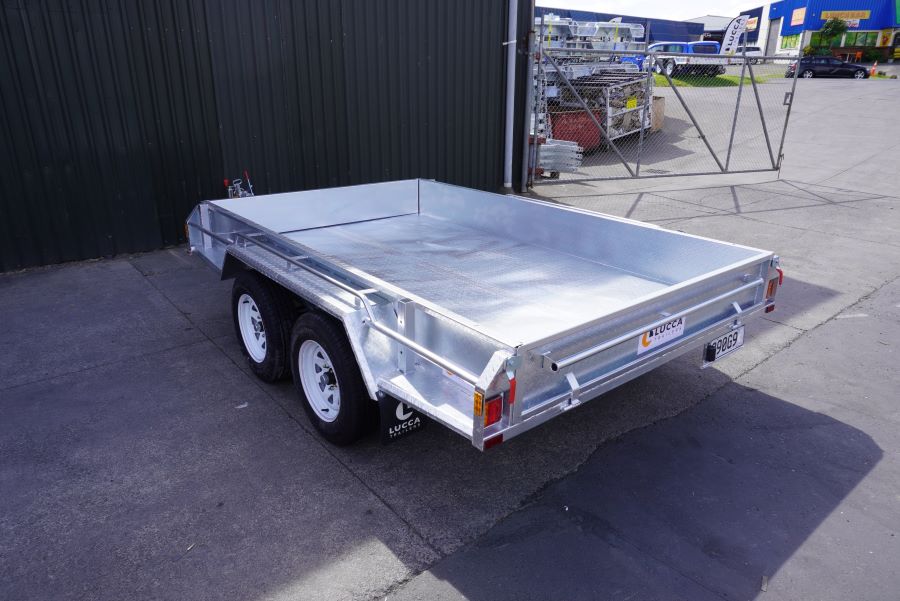

The Master Loader - Tandem axle 10ft x 6ft braked trailer.
The 10 x 6ft Tandem Axle Braked Trailer, with a payload of 2000kg is strong and reliable with additional capacity.
This trailer comes with significantly extra size and can easily fit two water tanks or even a Polaris farm vehicle (when adding ramps).
This tandem axle trailer is fully-welded, not bolted together, has a 2.5mm checker plate floor and sides, and wraps up the sides, giving additional strength. The surface finish is hot-dipped galvanized steel construction.
This model has lights on the outer edges, allowing the trailer to have even longer loads and drive with the front and rear tailgates lowered. Other retailers have trailers that can't drive with gates lowered as the gate hits the cage.
Features:
- Tow bar braking system for enhanced braking ability
-Side running boards and mudguards that you can stand on when loading
- Side and rear pipes for tie-downs
- Heavy duty payload capacity of 2000kg
- 14" wheels for increased stability when towing
Make it versatile. Add these on as Extras:
- Removable cage (900mm) with rear swinging gate for loading
- Removable tarpaulin frame and tarpaulin covers (900mm)
- Ramps
- Lockable toolbox
(See Extras for add-on pricing and information).
- Lead time: Immediate
- Pick-up locations available
- Finance available
- Assembled in NZ
This item is currently out of stock
Out of stock
Out of stock
Technical Specifications
Axle | Double axle / Tandem axle |
Overall Dimensions (mm) | |
Box Size (Internal) | 10ft by 6ft (3048mm x 1828mm) |
Draw bar length from the base of the tail gate | |
Full Welded Chasis | |
Tare Weight (Empty Trailer Weight) | 550kg |
Payload Capacity (Maximum Load Limit) | 2000kg |
ATM Weight | 2550kg |
Floor and Sides Construction | 2.5mm checker steel plate with Standard 300mm Depth sides |
Trailer Box Side Height | 300mm |
Frame | |
Steel Thickness | 2.5mm |
Surface Finish | Hot-dipped galvanised steel |
Tow Ball Coupler | NZ and Australian standard 1 7/8" |
50mm Coupling | Can be supplied at extra cost |
Safety Chains | Standard 10cm |
Dual Coupling | Can be supplied at extra cost |
Wheels & Tyres | 165/70R-14 inch Tyre, Commercial |
Braked | Mechanical disc brake with handbrake function |
Mudguards | 2.50mm checker-plate with folding design function |
Lights | LED Lights |
Reflectors | Orange, amber and white side lights |
Electrical Details | Electrical plug standard 7 pin plug |
Jockey Wheel Included | Yes |
Tie Downs | 4 full length tie down rails |
H Frame Holders | Yes |
Hinged / Removable Tail Gates | Yes |
Leaf Springs | 7 inch Slipper Leaf Spring |
Axle Style | Solid axle 50mm solid square axle |
Full Welded Chassis |
Other
Bearing Savers | NZ Standard Bearings |
Hydraulic Power Pack | |
Battery with solar charger or Anderson plug wired to car | |
Other features / details | |
Lead Time (when not in stock at location) |
East Tamaki: Immediate |
Other Add-Ons Available
- Mower bucket
- Additional bike tow bar
- Sliding doors
Warranty
Warranty | Full 3 year warranty |
