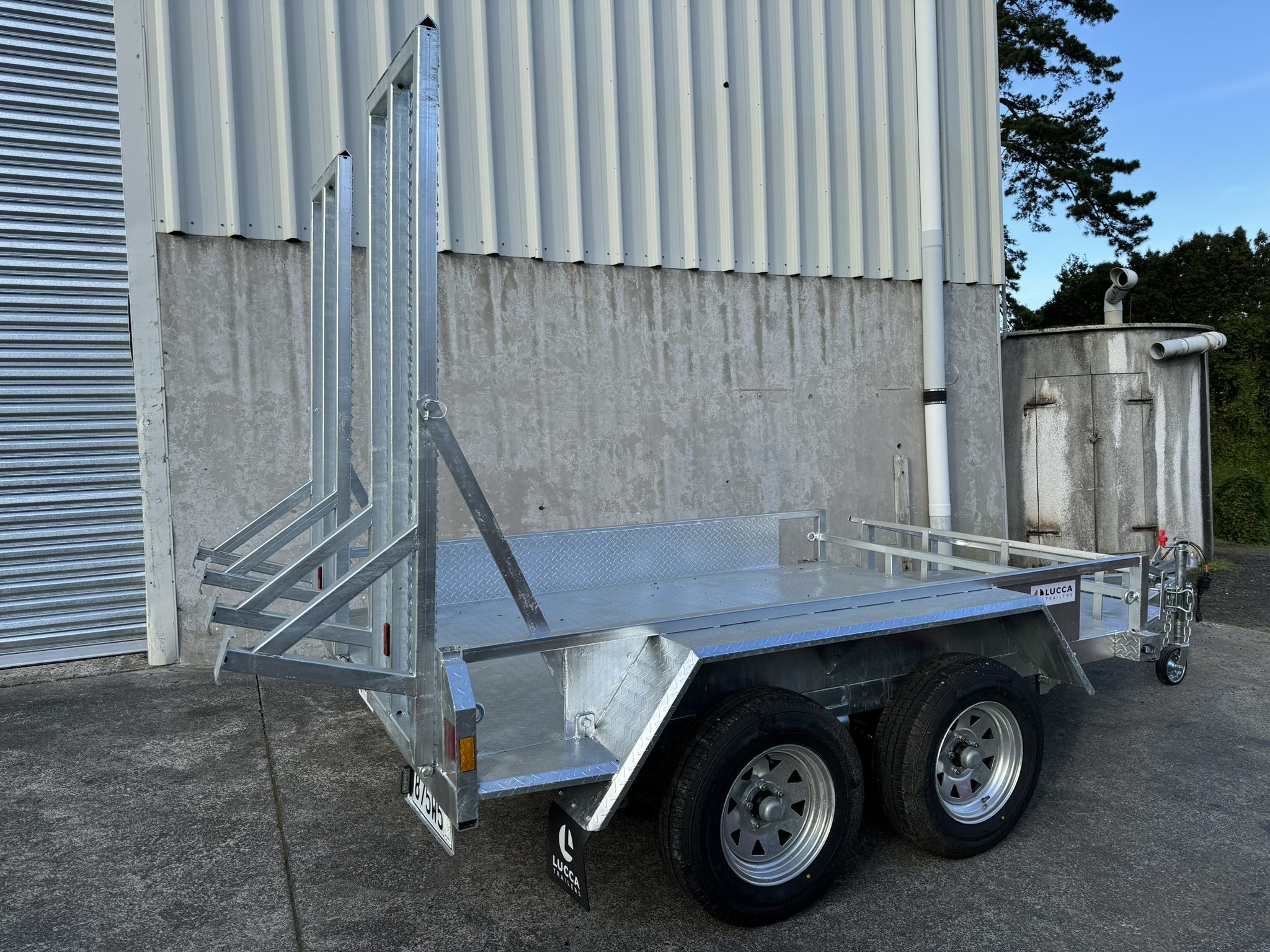

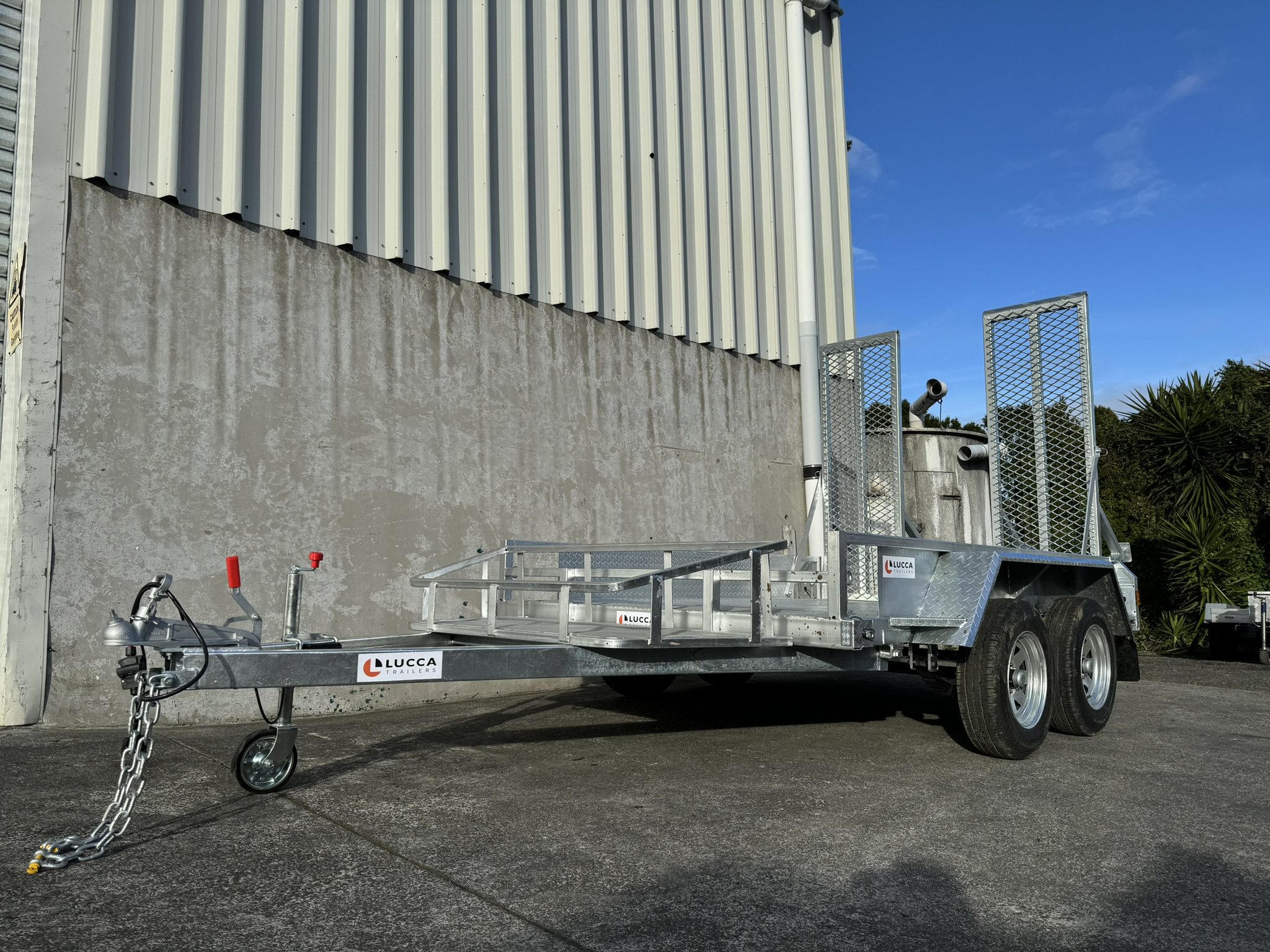

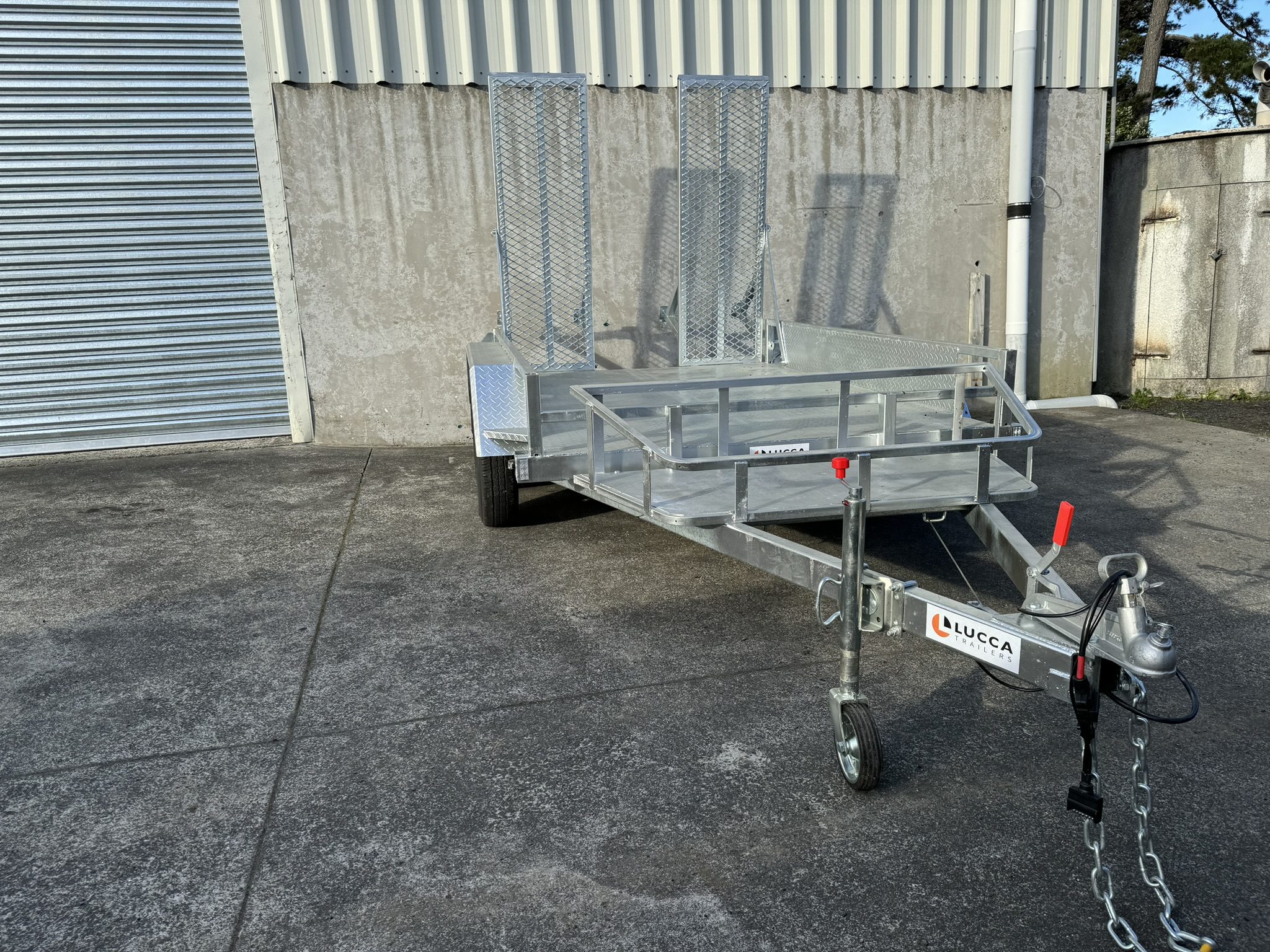

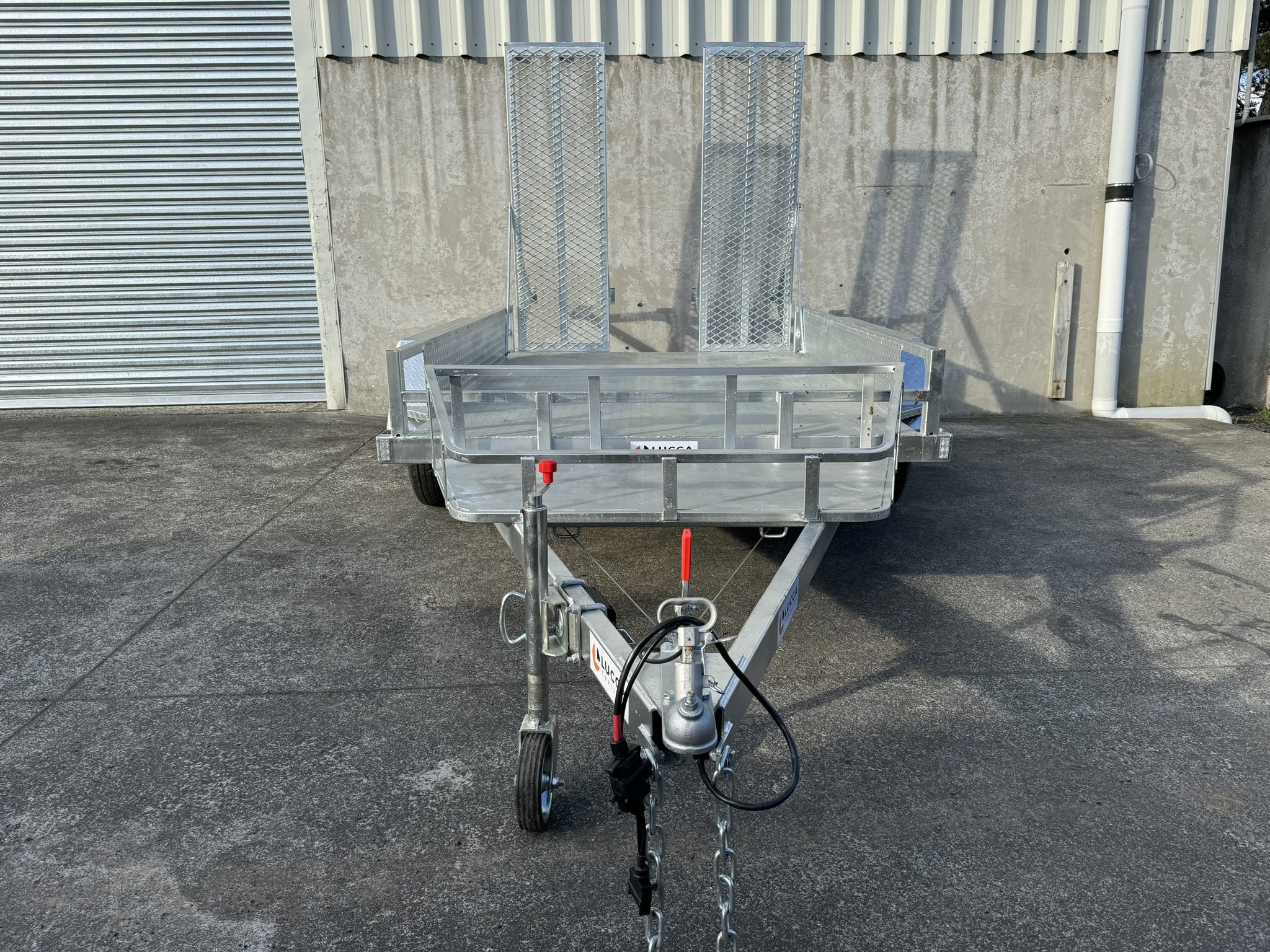

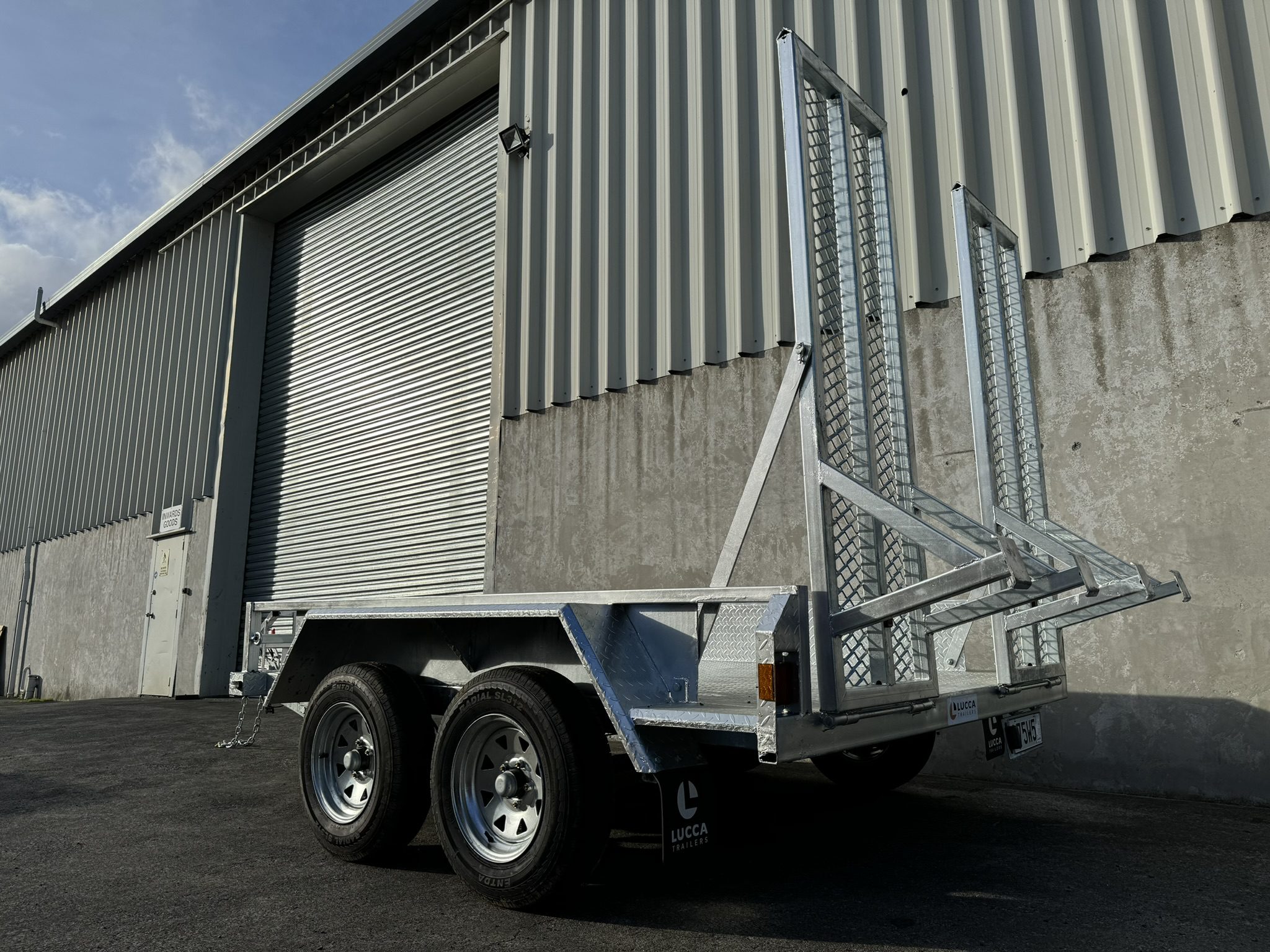

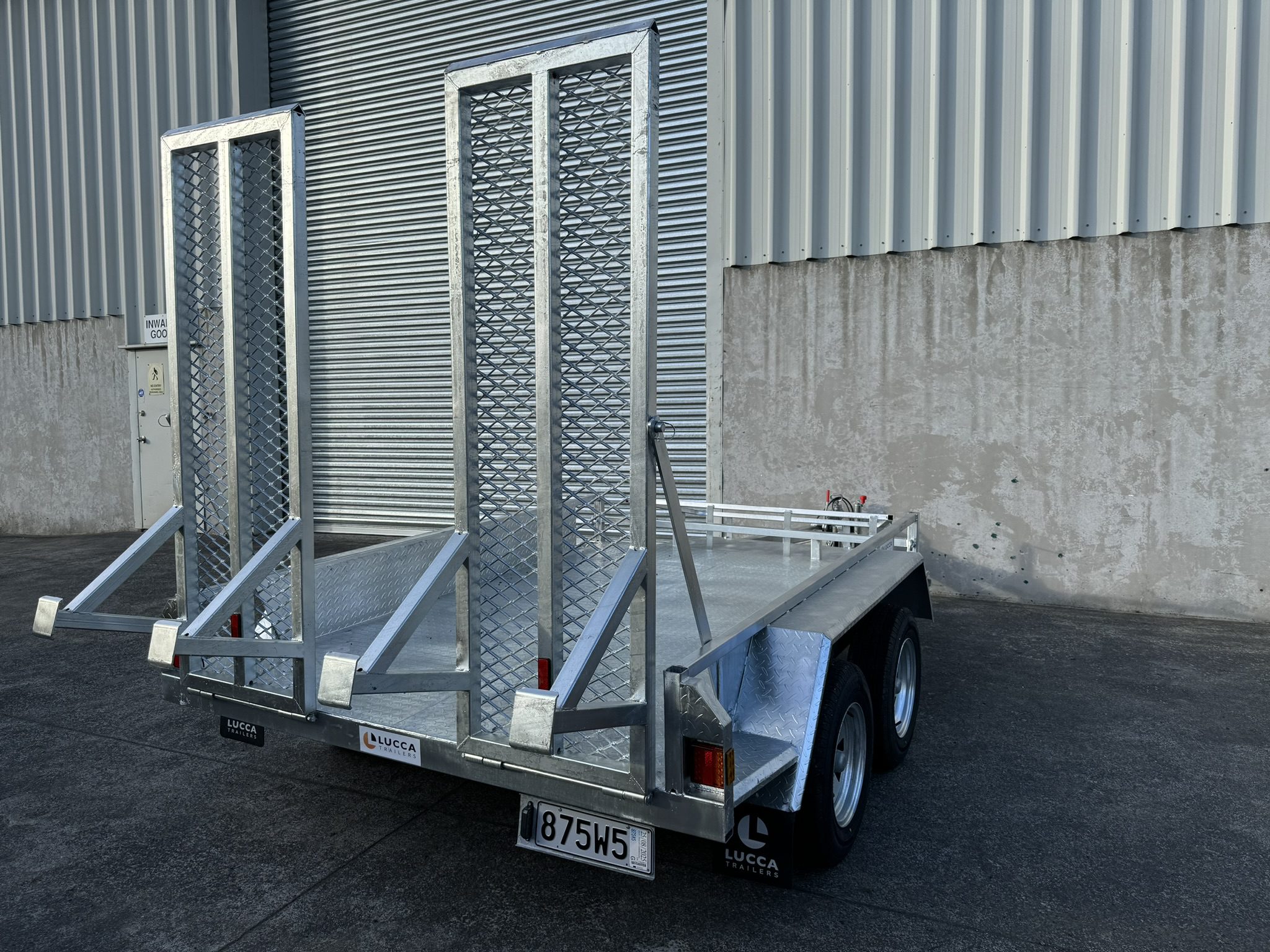

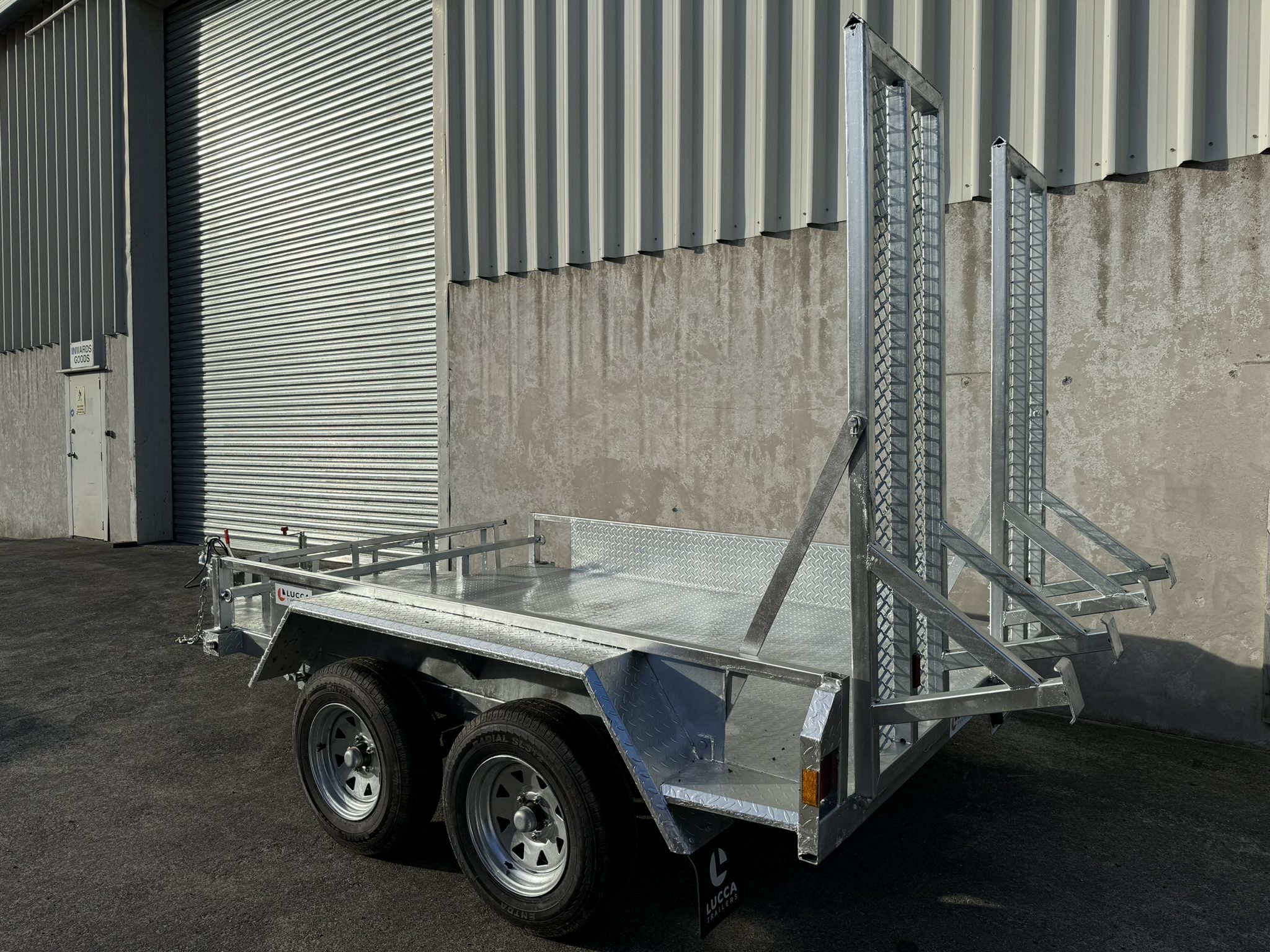

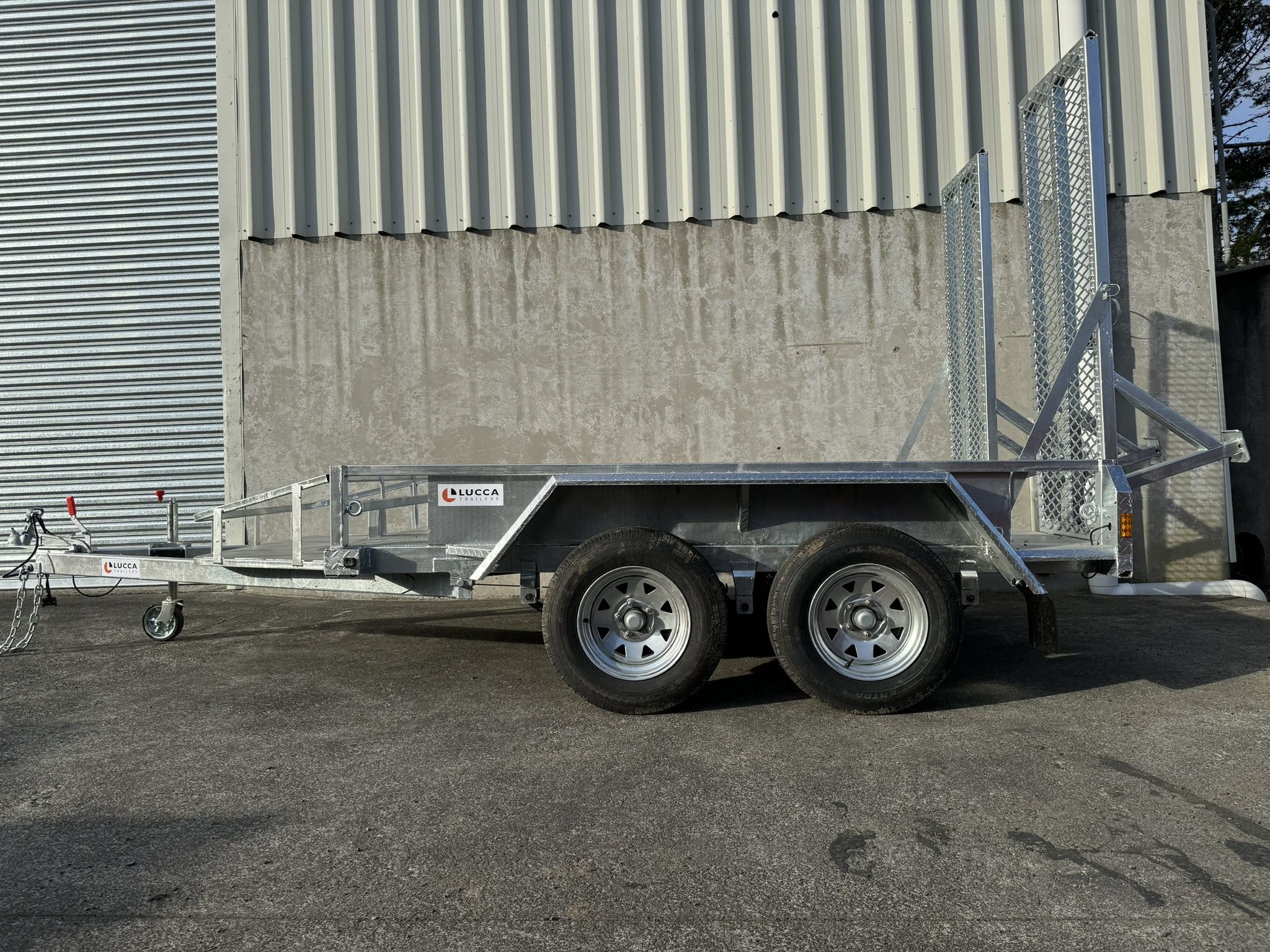

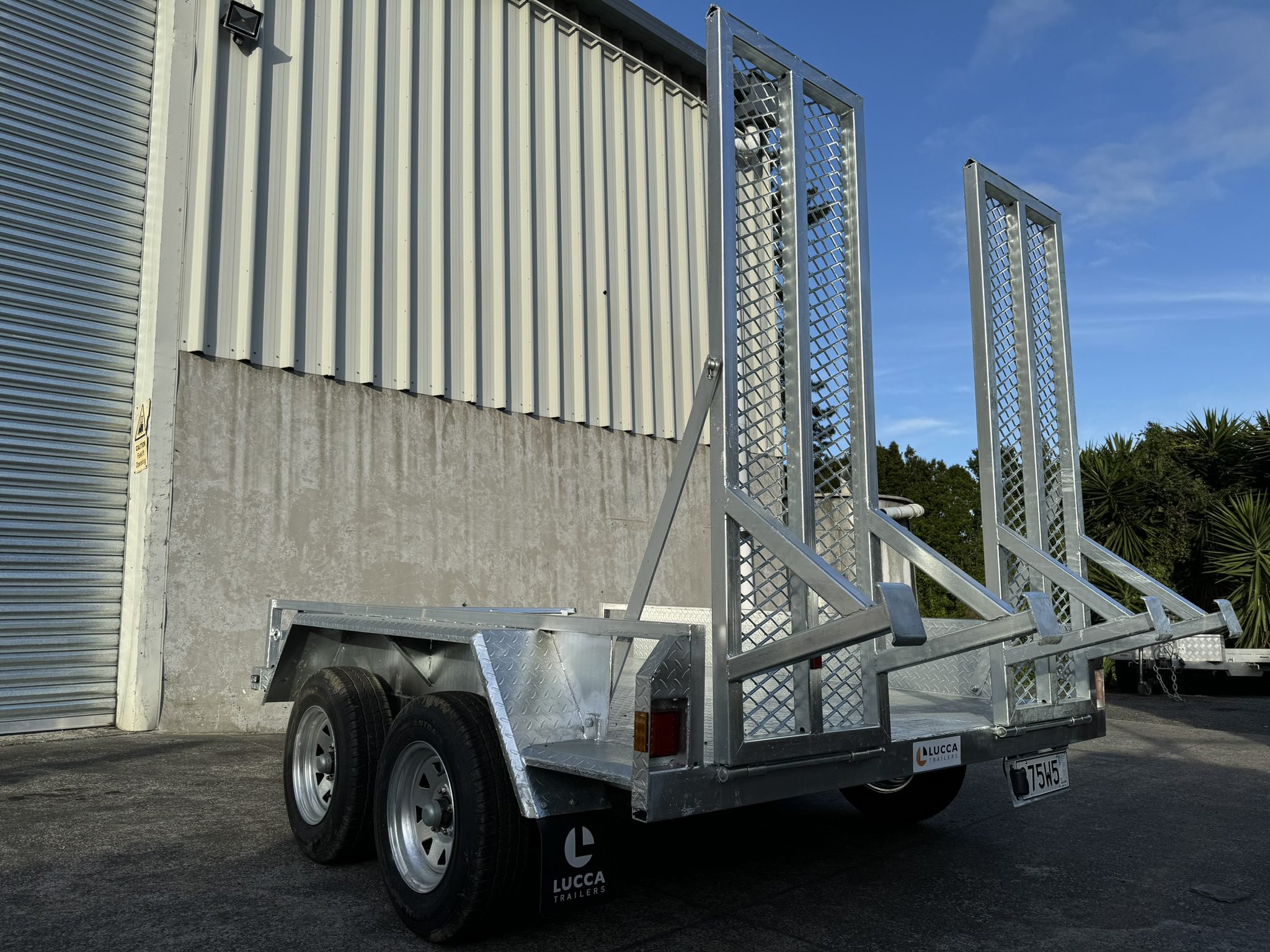

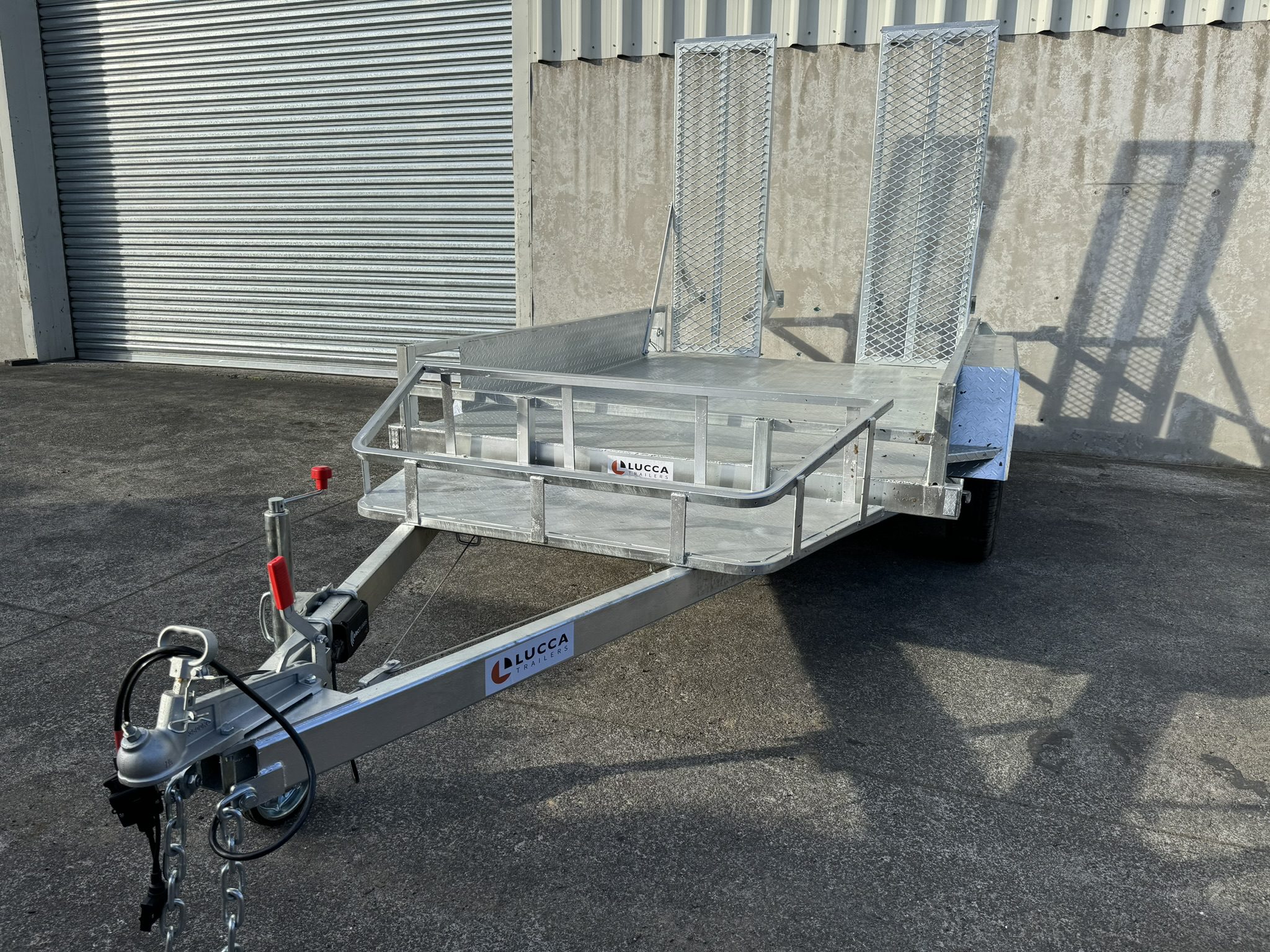

Digger Transporter Baby Dino George 8ft x 5ft (2.5 Tonne)
$4,999.00
The 8 x 5 Foot Baby Dinosaur we call George Dino. If you’re looking for a tough, reliable transporter for your high-value working vehicles, we have the perfect all-rounder for you with our digger transporter. Our digger transporters are perfect and specifically designed for transporting light machinery such as diggers, tractors etc. The George Baby Dino has a slightly heavier tare weight and comes with inset lights.
These rugged transporters are built for good on-road handling, load management, and excellent maneuverability on the road. Get the perfect Lucca Trailers digger transporter for your hard-working vehicles and superior performance on the road.
A strong and sturdy trailer ready-assembled by our team in New Zealand and perfect for transporting light machinery such as diggers, tractors etc.
Solid steel construction, fully-welded (not bolted together) and hot dipped galvanised steel with checker plate flooring and mudguards means it is robust and strong.
Features:
- Heavy duty capacity, suitable for diggers of up to of 2000kg

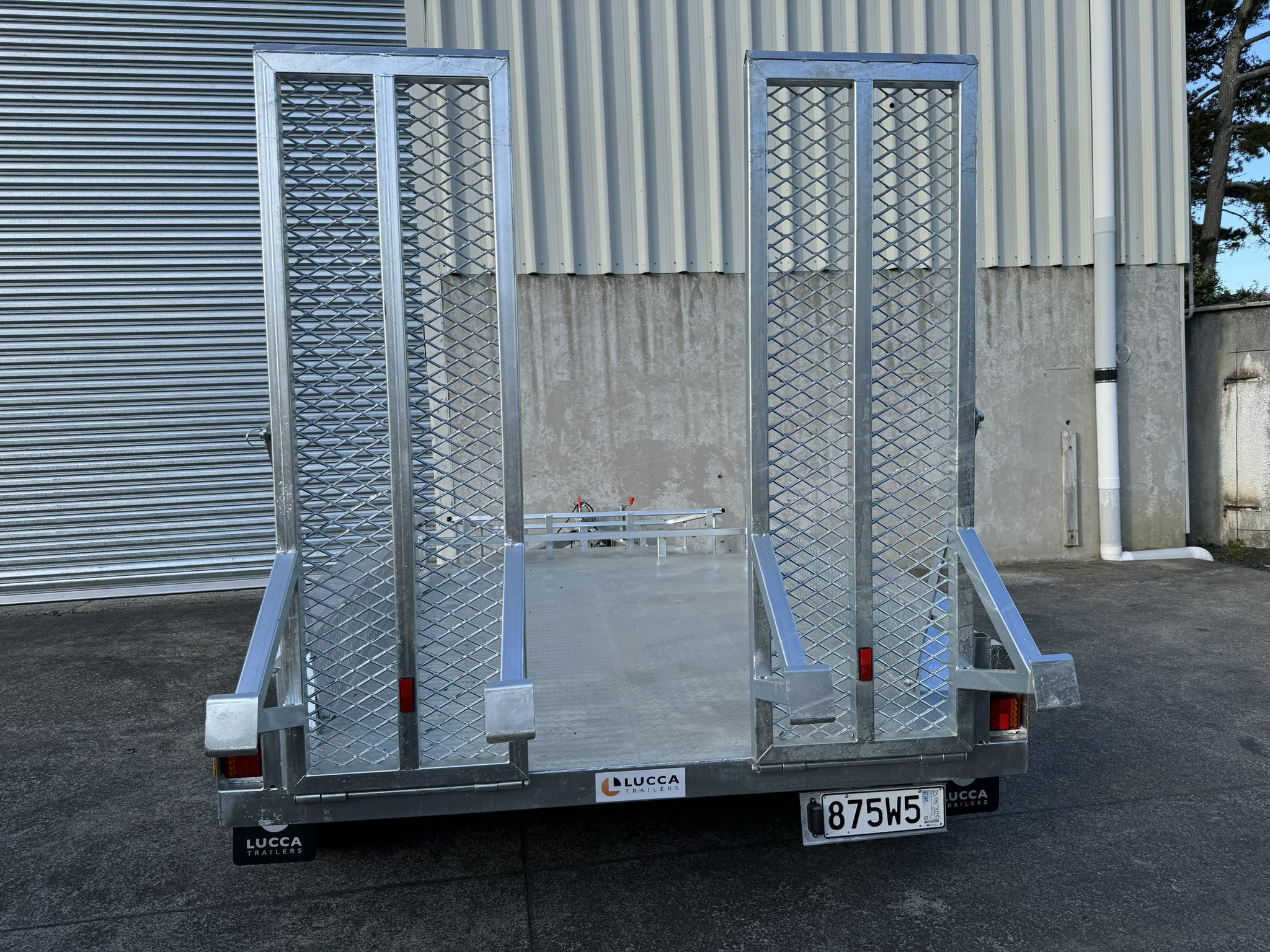

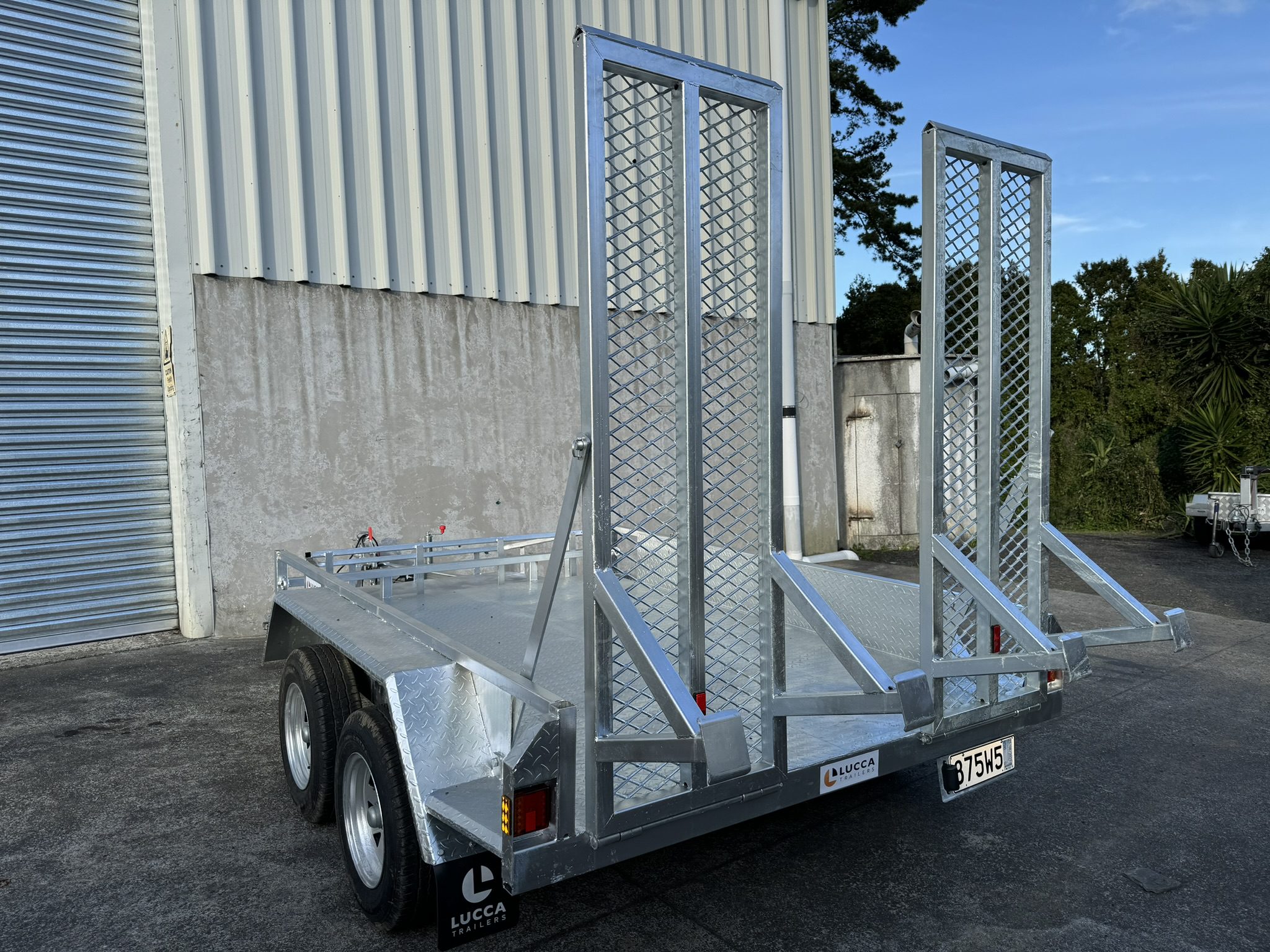

- Tough robust ramps with stability feet
- Heavy duty tie down points welded on the sides
- Mechanical disk brakes
- Heavy-duty suspension
- 14” wheels for increased stability
- Lead time: Immediate
- Pick-up locations available
- Finance available
- Assembled in NZ
Order Now:
9 in stock
9 in stock
Technical Specifications
| Axle | Double axle / Tandem axle |
| Overall Dimensions (mm) | 4650mm x 1825mm |
| Box Size (Internal) | 8ft by 5ft (2438mm x 1525mm) |
| Draw bar length from the base of the tail gate | 2300mm |
| Full Welded Chasis | Yes |
| Tare Weight (Empty Trailer Weight) | 550kg |
| Payload Capacity (Maximum Load Limit) | 2000kg |
| ATM Weight | 2550kg |
| Floor and Sides Construction | 2.5mm checker steel plate with Standard 300mm Depth sides |
| Trailer Box Side Height | 300mm |
| Frame | |
| Steel Thickness | 2.5mm |
| Surface Finish | Hot-dipped galvanised checker steel |
| Tow Ball Coupler | NZ and Australian standard 1 7/8" |
| 50mm Coupling | Can be supplied at extra cost |
| Safety Chains | Standard 10cm |
| Dual Coupling | Can be supplied at extra cost |
| Wheels & Tyres | 165/70R-14 inch Tyre, Commercial |
| Braked | Mechanical disc brake |
| Mudguards | 2.55mm checker-plate with folding design function |
| Lights | LED Lights |
| Reflectors | Yes |
| Electrical Details | Electrical plug standard 7 pin plug |
| Jockey Wheel Included | Yes, Swing up 10 inch robust Jockey Wheel |
| Tie Downs | Yes |
| H Frame Holders | Can be added at extra cost |
| Hinged / Removable Tail Gates | N/A |
| Leaf Springs | 9 Leaf Roller Rock Load Share Suspension |
| Axle Style | 50mm Solid Square Axles |
| Full Welded Chassis | Yes |
Other
| Bearing Savers | NZ Standard Bearings |
| Hydraulic Power Pack | |
| Battery with solar charger or Anderson plug wired to car | |
| Other features / details | |
| Lead Time (when not in stock at location) |
East Tamaki: Immediate |
Add-On Upgrades
| Registration and 3-year WOF | $160 |
| Spare Wheel | $199 |
| Tarpaulin - 900mm | $ |
| Cage - 900mm | $ |
| Trailer Lock | $25 |
| Electric Braking Remote | $ |
| Tarp Installation (1.5 hour install time) | $ |
| Digger ramps installed | $ |
| Lockable Toolbox plus Installation | $ |
| Lockable Tool box large including Installation | $ |
| H frames | $ |
| Ramp - Mesh | $ |
Warranty
| Warranty | Full 3 year warranty |
Stock Locations
| East Tamaki | Y |
| Riverhead | Y |
| Whangarei | Upon prior arrangement |
| Kerikeri | Y |
| Hamilton | Y |
| Whakatane | pick up orders only |
Delivery Fee
| East Tamaki | None |
| Riverhead | None, pick up your purchase from our Riverhead branch at no additional charge. Call us to arrange. |
| Whangarei |
Single Axle Trailers: $200. Tandem Axle Trailers: $250. Digger Transporters: $300. Hydraulic, Enclosed, Car Transporter and other larger trailers: $450. |
| Kerikeri |
Single Axle Trailers: $250. Tandem Axle Trailers: $300. Digger Transporters: $400. Hydraulic, Enclosed, Car Transporter and other large trailers: $499. |
| Hamilton |
Single Axle Trailers: $175. Tandem Axle Trailers: $175 / $200 (depending on size). Digger Transporters: $200. Hydraulic, Enclosed, Car Transporter and other large trailers: $250. |
| Whakatane |
Single and Tandem Axle Trailers: $325. Digger Transporters: $350. Hydraulic, Enclosed, Car Transporter and other large trailers: $400. |
| Tauranga |
Single Axle Trailers: $250. Tandem Axle Trailers: $250 / $275 (depending on size). Digger Transporters: $275. Hydraulic, Enclosed, Car Transporter and other large trailers: $375. |
| Taupo | $475 for all trailers. |
| Rotorua | $350 for all trailers. |
