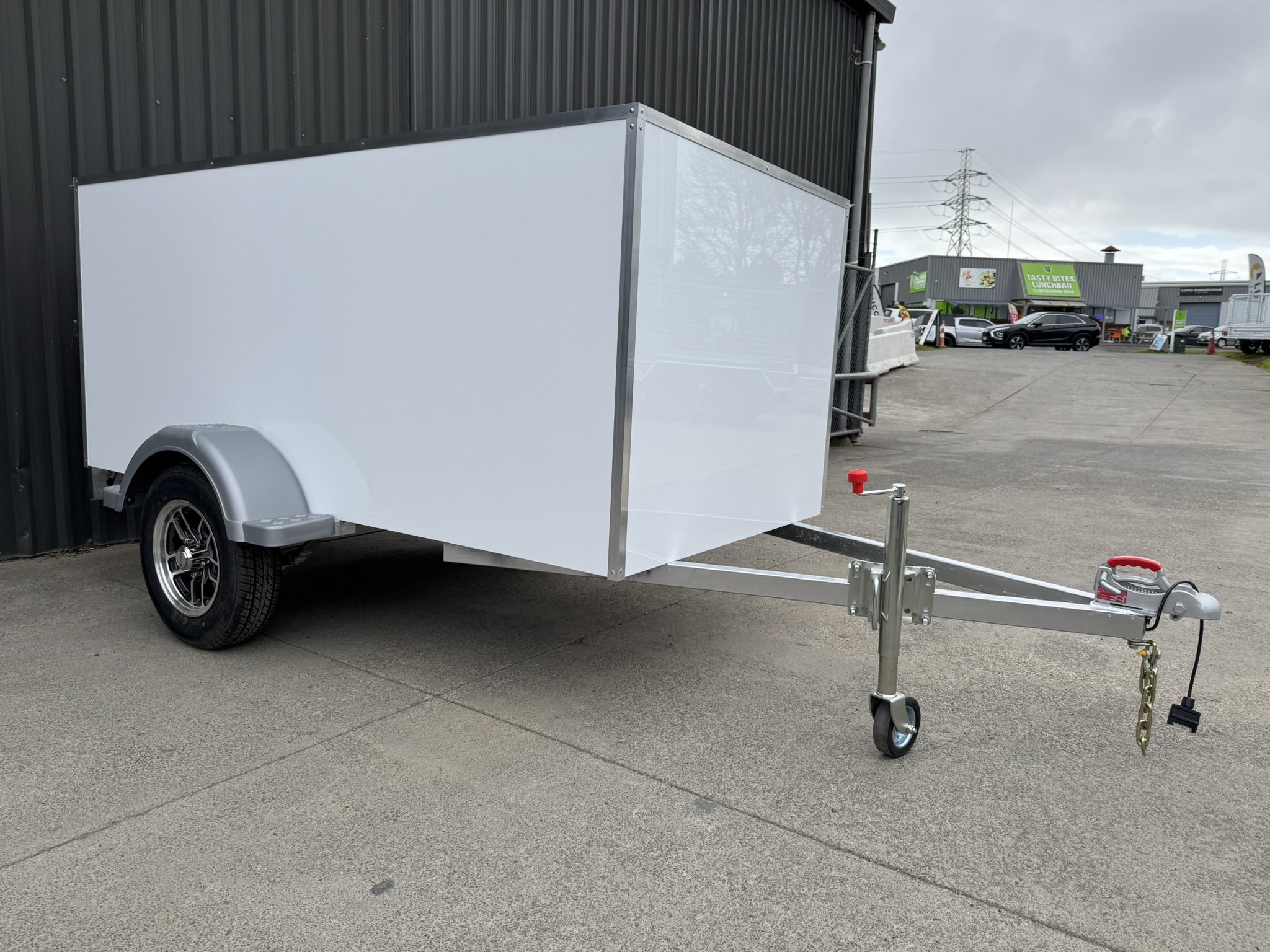

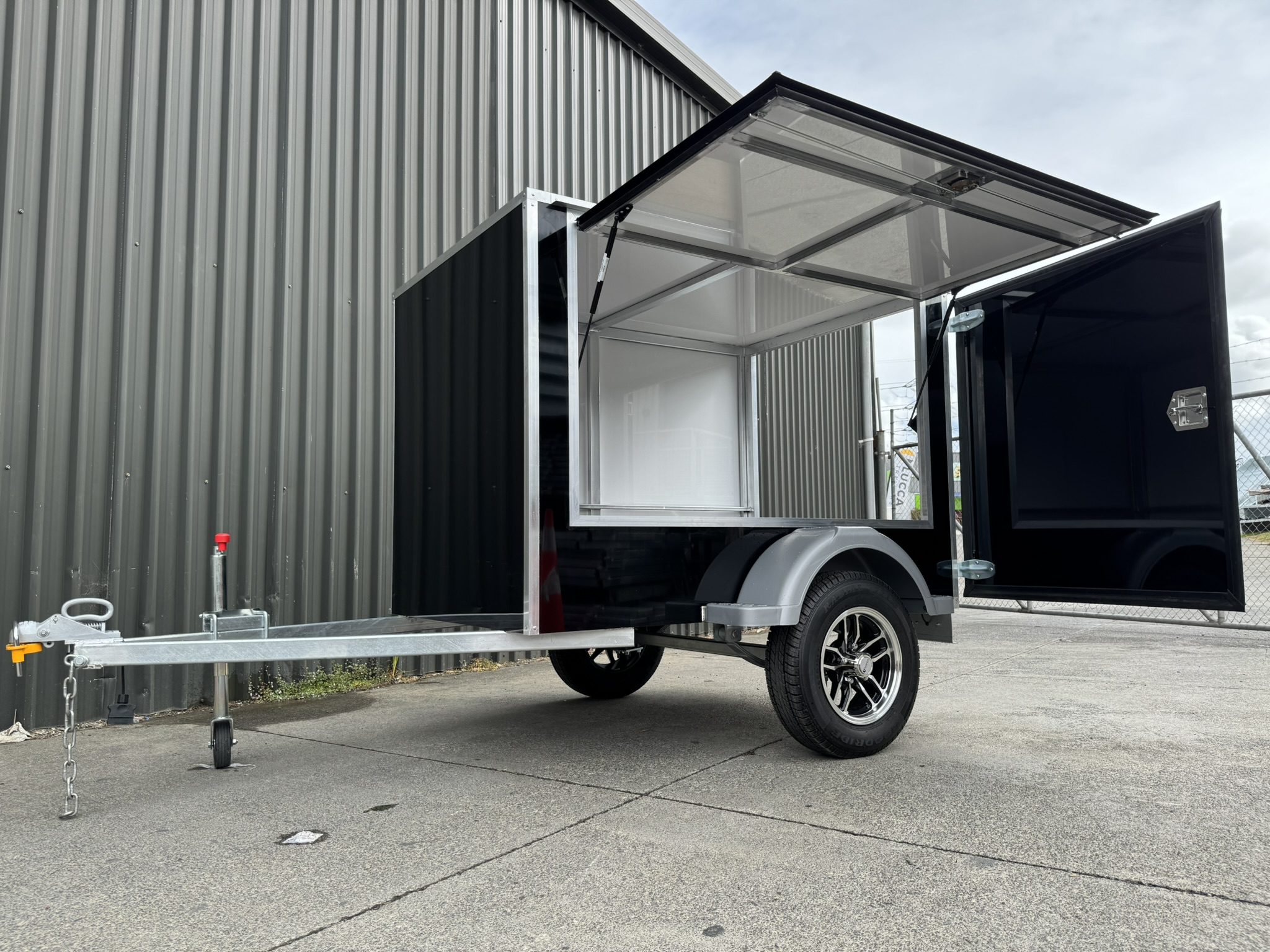

Luggage Trailer
$6,499.00
Elevate your travel experience with our Enclosed Luggage Trailer, the ultimate trailer for transporting your luggage effortlessly, whether it's for business trips or family holidays. Proudly crafted in New Zealand, this trailer combines style with functionality, ensuring that your belongings are securely towed in uncompromised style.
Why Choose Our Enclosed Luggage Trailer?
- Robust Construction: Built with solid steel, fully welded for superior strength (not bolted), and finished with hot-dipped galvanised steel. This trailer is designed to withstand the rigors of both urban and rural environments, providing lasting durability and protection against corrosion.
- Stylish Design: Features a sleek black ACM panel exterior that not only looks great but also offers additional protection. Perfect for those who value both aesthetics and functionality.
- Customisation Options: Tailor this trailer to meet your specific needs. Add extras and modifications, or let us build a completely custom trailer to match your unique style, all at an additional cost.
- Practical Features: Equipped with a single axle non-braked system, this trailer is easy to maneuver and ideal for lighter loads. It includes 13" alloy wheels with a 5x4.5" stud pattern and 155R13c tyres, plastic mudguards, multi-volt LED tail lights, a rear door hinged on the left side, and a convenient side opening with a top-hung hatch supported by gas struts for easy access.
Specifications:
- Overall Dimensions: 3000mm Length x 1700mm Width
- External Box Size: 1810mm Length x 1210mm Width
- Internal Box Size: 1760mm Length x 1160mm Width x 1100mm Height
Enhance your towing experience with options like a spare tyre or a secure trailer lock for added peace of mind. On-road costs apply.
Our Enclosed Luggage Trailer is not just a tool; it's an investment in hassle-free transport that you can rely on for years to come. Whether you're heading to a crucial business meeting or embarking on a leisurely holiday, our trailer ensures your luggage arrives just as intended.
Explore how our Enclosed Luggage Trailer can make your travels smoother and more stylish. Visit us to find out more and see how easy and efficient towing your luggage can be!
- Lead time: Enquire
- Pick-up locations available
- Finance available
- Assembled in NZ
Order Now:
Technical Specifications
| Axle | Single 50x50x5 SHS |
| Overall Dimensions (mm) | 3000mm L x 1700mm W |
| Box Size (Internal) | External: 1810mm L x 1210mm W | Internal: 1760mm L x 1160mm W x 1100mm H |
| Draw bar length from the base of the tail gate | |
| Full Welded Chasis | |
| Tare Weight (Empty Trailer Weight) | 400kg |
| Payload Capacity (Maximum Load Limit) | 800kg |
| ATM Weight | 1200kg |
| Floor and Sides Construction | 12mm Trans-Tex 220 Ply floor with Ply lined 3 sides lining |
| Trailer Box Side Height | |
| Frame | |
| Steel Thickness | |
| Surface Finish | |
| Tow Ball Coupler | 1 7/8 |
| 50mm Coupling | |
| Safety Chains | |
| Dual Coupling | |
| Wheels & Tyres | 13" Alloy Wheels with 5x4.5" (5 stud Ford) stud pattern and 155R13c tyres |
| Braked | No |
| Mudguards | Plastic |
| Lights | Multivolt LED |
| Reflectors | |
| Electrical Details | 7-pin flat |
| Jockey Wheel Included | Lucca Small |
| Tie Downs | Rope rail 2 sides |
| H Frame Holders | |
| Hinged / Removable Tail Gates | |
| Leaf Springs | Eye/Slipper suspension |
| Axle Style | |
| Full Welded Chassis |
Other
| Bearing Savers | |
| Hydraulic Power Pack | |
| Battery with solar charger or Anderson plug wired to car | |
| Other features / details | Rear door: Hinged left side Side opening: Top hung hatch left side with gas struts |
| Lead Time (when not in stock at location) |
Warranty
| Warranty | 3 year full warranty |
