10ft by 6ft Hydraulic

$8,999.00

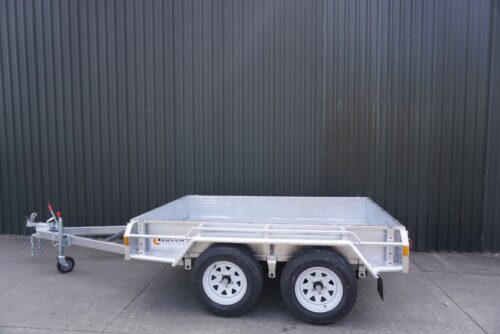

The Kingy - Tandem axle 10ft x 6ft Hydraulic tipper trailer.

10x6ft Hydraulic Tipper Tandem Axle Trailer with a 2520kg payload has a hydraulic power pack, battery, and wired remote. The Electronic Braking System for enhanced braking ability ensures safety.

Ideal for landscapers, farmers, stonemasons and scaffolding with a two tonnes stronghold. Tipping makes for easy loading and off-loading. Its capability for specific add-ons allows for great customisations to trailers.

This excellent quality product comes with extra payload capacity.

Its capability for specific add-ons (like the cage) allows for great customisations to your trailer to make it exactly fit for your purpose.

For the electric braking feature, you can buy a remote for $300 that runs from an app on your phone.

Features:
- Steel box size 10 x 6 ft fully welded for added strength.
- Side running boards and mudguards that you can stand on while loading.
- Solid welded construction, not bolted together
- Internal Measurements are 3.05m x 1.83m
- Load Limit: Heavy duty payload capacity of 2520kg
- Floor & side: Checker plate 3mm
- Tie-down points: side and rear tubes
- Tires: 14″ Commercial wheels
- Suspension: Compensating 9 leaf equalising suspension

Make it versatile. Add these on as Extras:
- Removable cage (900mm) with rear swinging gate for loading
- Removable tarpaulin frame and tarpaulin covers (900mm)
- Ramps
- Lockable toolbox
(See Extras for add-on pricing and information).

  • Lead time: Immediate
  • Pick-up locations available
  • Finance available
  • Assembled in NZ

Order Now:

4 in stock

4 in stock

Registration and 3 year WOF

Hydraulic Trailer Cage 10 x 6ft / 900mm

Tarpaulin/Trailer Cover 10 x 6 trailer 900mm

Spare wheel

H Frames 6ft 900mm

Ramp 6 foot wide

Toolbox

Towbar Trailer Lock

Tarp Installation

You can choose your pickup location at the checkout.

Quantity:

Technical Specifications

Axle Double axle / Tandem axle
Overall Dimensions (mm)
Box Size (Internal) 10ft by 6ft (3048mm x 1828mm)
Draw bar length from the base of the tail gate 2 meters long
Full Welded Chasis
Tare Weight (Empty Trailer Weight) 980kg
Payload Capacity (Maximum Load Limit) 2520kg
ATM Weight 3500kg
Floor and Sides Construction 2.6mm checker steel plate with Standard 300mm Depth sides
Trailer Box Side Height 300mm
Frame
Steel Thickness 2.5mm
Surface Finish Hot-dipped galvanised steel
Tow Ball Coupler NZ and Australian standard 1 7/8"
50mm Coupling Can be supplied at extra cost
Safety Chains 2 x 10mm chains
Dual Coupling Can be supplied at extra cost
Wheels & Tyres Galvanised rims with 185R14c tyres
Braked Electrical Brake
Mudguards 2.6mm checker-plate with folding design function
Lights LED Lights & Reflectors NZ standard
Reflectors Amber, red, white
Electrical Details Flat 7 pin plug, Elecbrakes brake controller
Jockey Wheel Included Yes
Tie Downs Can be supplied at extra cost
H Frame Holders Optional bolt on holders
Hinged / Removable Tail Gates Yes
Leaf Springs 9 leaf equalising suspension
Axle Style 50mm solid round axle
Full Welded Chassis

Other

Bearing Savers NZ Standard Bearings
Hydraulic Power Pack Yes
Battery with solar charger or Anderson plug wired to car
Other features / details
Lead Time (when not in stock at location)

East Tamaki: Immediate
Hamilton, Riverhead: 24 hours
Kerikeri, Whangarei: 48 hours
Taupo, Tauranga, Whakatake: By Arrangement

Other Add-Ons Available

  • Bespoke design additional available on request

Warranty

Warranty Full 3 year warranty
