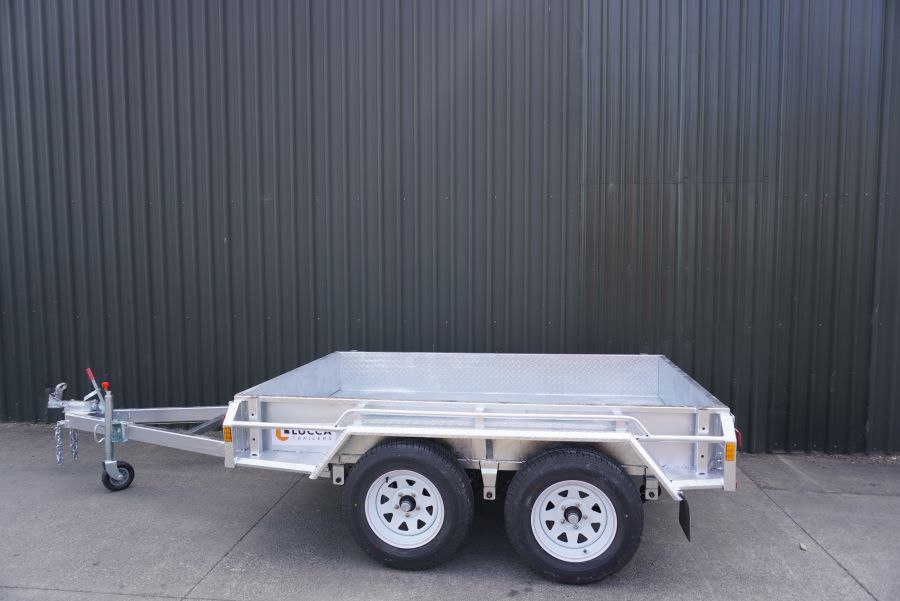

8ft by 5ft Hydraulic Tipping Trailer
$8,299.00
The Snapper - Tandem axle 8ft x 5ft Hydraulic tipper trailer.

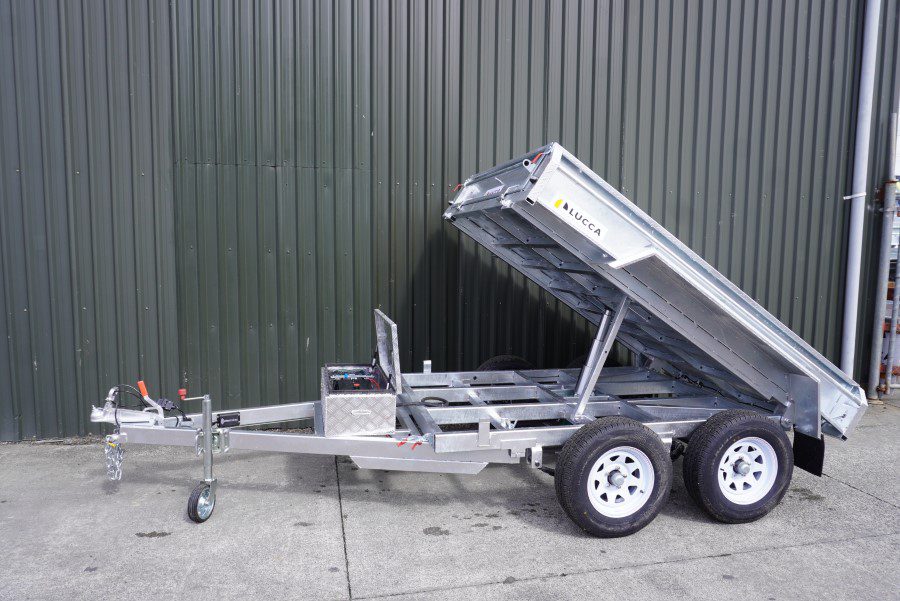

8 x 5ft Hydraulic Tipper Tandem Axle Trailer with a 2080kg payload has a hydraulic power pack, battery, and wired remote. The Electronic Braking System for enhanced braking ability ensures safety.
Ideal for landscapers, farmers, stonemasons, and scaffolders with a two-tonne stronghold. Tipping makes for easy loading and off-loading.
Its capability for specific add-ons allows for great customisations to trailers. The cage would make an excellent addition to make this a very versatile option and a trailer to cater for all your hauling needs.
This excellent quality product comes with extra payload capacity.
For the electric braking feature, you can purchase a remote for $300 that runs from an app on your phone. Its capability for specific add-ons (like the cage) allows for great customisations to trailers.
Features:
- Steel box size 8×5 ft fully welded for added strength.
- Side running boards and mudguards that you can stand on while loading.
- Solid welded construction, not bolted together
- Internal Measurements: 2.44m by 1.524m
- Heavy duty payload capacity of 2080kg
- Floor & side: Checker plate 2.6mm
- Tie-down points: side and rear tubes
- Tires: 14″ Commercial wheels
- Suspension: Compensating 9 leaf equalising suspension
Make it versatile. Add these on as Extras:
- Removable cage (900mm) with rear swinging gate for loading
- Removable tarpaulin frame and tarpaulin covers (900mm)
- Ramps
- Lockable toolbox
(See Extras for add-on pricing and information).
- Lead time: Immediate
- Pick-up locations available
- Finance available
- Assembled in NZ
Order Now:
2 in stock
2 in stock
Technical Specifications
| Axle | Double axle / Tandem axle |
| Overall Dimensions (mm) | |
| Box Size (Internal) | 8ft by 5ft (2438mm x 1524mm) |
| Draw bar length from the base of the tail gate | |
| Full Welded Chasis | |
| Tare Weight (Empty Trailer Weight) | 920kg |
| Payload Capacity (Maximum Load Limit) | 2080kg |
| ATM Weight | 3000kg |
| Floor and Sides Construction | 2.6mm checker steel plate with Standard 300mm Depth sides |
| Trailer Box Side Height | 300mm |
| Frame | |
| Steel Thickness | 2.6mm |
| Surface Finish | Hot-dipped galvanised steel |
| Tow Ball Coupler | NZ and Australian standard 1 7/8" |
| 50mm Coupling | Can be supplied at extra cost |
| Safety Chains | Standard 10cm |
| Dual Coupling | Can be supplied at extra cost |
| Wheels & Tyres | Galvanised rims with 185R14c tyres |
| Braked | Electric drum brakes on all 4 wheels |
| Mudguards | 2.6mm checker-plate with folding design function |
| Lights | LED Lights |
| Reflectors | Amber, red, white |
| Electrical Details | Flat 7 pin plug, Elecbrakes brake controller |
| Jockey Wheel Included | Yes |
| Tie Downs | 4 full length tie down rails |
| H Frame Holders | Optional bolt on holders |
| Hinged / Removable Tail Gates | Yes |
| Leaf Springs | 9 leaf equalising suspension |
| Axle Style | 50mm solid round axle |
| Full Welded Chassis |
Other
| Bearing Savers | NZ Standard Bearings |
| Hydraulic Power Pack | Yes |
| Battery with solar charger or Anderson plug wired to car | |
| Other features / details | |
| Lead Time (when not in stock at location) |
East Tamaki: Immediate |
Other Add-Ons Available
- Bespoke one off extras are available on request
Warranty
| Warranty | Full 3 year warranty |
