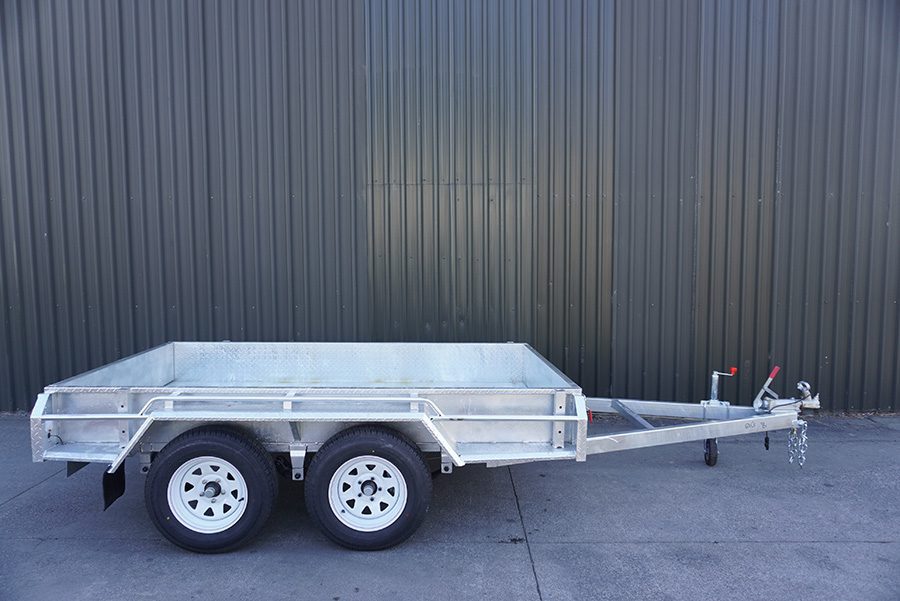

Tandem 9ft by 5ft


The Level-up Loader - Tandem axle 9ft x 5ft braked trailer.

Tandem Trailers are strong and reliable with additional capacity.

User-friendly for builders' sheets, GIB board and ride-on mowers.

The 9 x 5ft Tandem Trailer is braked and has a 2000kg payload. Its great size makes it extra versatile.

This tandem axle trailer is fully-welded, not bolted together, has a 2.5mm checker plate floor and sides, and wraps up the sides, giving additional strength. The surface finish is hot-dipped galvanized steel construction.

This model has lights on the outer edges, allowing the trailer to have even longer loads and drive with the front and rear tailgates lowered. Other retailers have trailers that can't drive with gates lowered as the gate hits the cage.

- Tow bar braking system for enhanced braking ability
-Side running boards and mudguards that you can stand on when loading
- Side and rear pipes for tie-downs
- Heavy duty payload capacity of 2000kg
- 14" wheels for increased stability when towing

Make it versatile. Add these on as Extras:
- Removable cage (900mm) with rear swinging gate for loading
- Removable tarpaulin frame and tarpaulin covers (900mm)
- Ramps
- Lockable toolbox
(See Extras for add-on pricing and information).

  • Lead time: Immediate
  • Pick-up locations available
  • Finance available
  • Assembled in NZ

Order Now:

10 in stock

10 in stock

Registration and 3 year WOF

Trailer Cage 9 x 5ft / 900mm

Tarpaulin/Trailer Cover 9 x 5 trailer 900mm

Spare wheel

H Frame 5ft 900mm

Ramp 5 foot wide


Towbar Trailer Lock

Tarp Installation

You can choose your pickup location at the checkout.


Technical Specifications

Axle Double axle / Tandem axle
Overall Dimensions (ft)
Overall Dimensions (mm)
Box Size (Internal) 9ft by 5ft (2743mm x 1524mm)
Draw bar length from the base of the tail gate
Full Welded Chasis
Tare Weight (Empty Trailer Weight) 500kg
Payload Capacity (Maximum Load Limit) 2000kg
ATM Weight 2500kg
Floor and Sides Construction 2.5mm checker steel plate with Standard 300mm Depth sides
Trailer Box Side Height 300mm
Steel Thickness 2.5mm
Surface Finish Hot-dipped galvanised steel
Tow Ball Coupler NZ and Australian standard 1 7/8"
50mm Coupling Can be supplied at extra cost
Safety Chains Standard 10cm
Dual Coupling Can be supplied at extra cost
Wheels & Tyres 165/70R-14 inch Tyre, Commercial
Braked Mechanical disc brake with handbrake function
Mudguards 2.50mm checker-plate with folding design function
Lights LED Lights
Reflectors Back of the trailer, red and orange
Electrical Details Electrical plug standard 7 pin plug
Jockey Wheel Included Yes
Tie Downs 4 full length tie down rails
H Frame Holders Yes
Hinged / Removable Tail Gates Yes
Leaf Springs 7 inch Slipper Leaf Spring
Axle Style Solid axle 50mm solid square axle
Full Welded Chassis


Bearing Savers NZ Standard bearings
Hydraulic Power Pack
Battery with solar charger or Anderson plug wired to car
Other features / details
Lead Time (when not in stock at location)

East Tamaki: Immediate
Hamilton, Riverhead: 24 hours
Kerikeri, Whangarei: 48 hours
Taupo, Tauranga, Whakatake: By Arrangement

Add-On Upgrades

Registration and 3-year WOF $160
Spare Wheel $199
Tarpaulin - 900mm $350
Cage - 900mm $499
Trailer Lock $25
Electric Braking Remote $n/a
Tarp Installation (1.5 hour install time) $70
Digger ramps installed $
Lockable Toolbox plus Installation $
Lockable Tool box large including Installation $180
H frames $425
Ramp - Mesh $525

Other Add-Ons Available

  • Mower bucket
  • Additional bike tow bar
  • Sliding doors


Warranty Full 3 year warranty

Stock Locations

East Tamaki Y
Riverhead Y
Whangarei Y
Kerikeri Y
Hamilton Y
Whakatane pick up orders only

Delivery Fee

East Tamaki None
Riverhead $50
Whangarei $175
Kerikeri $200
Hamilton $175
Whakatane $200
