Single 8ft by 4ft Tipping Trailer – Joy

Original price was: $2,199.00.Current price is: $1,799.00.

Save $400 until 26 February 2025 or while stock lasts. Was $2199  now $1799!

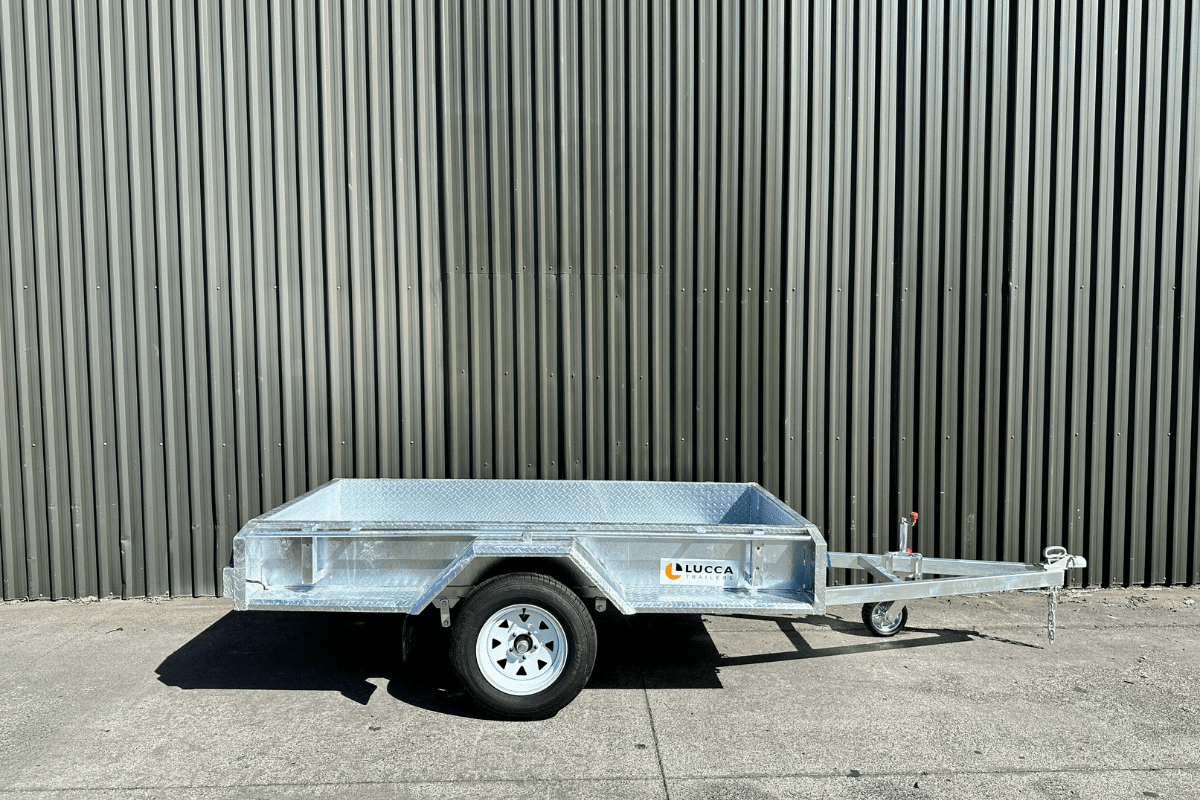

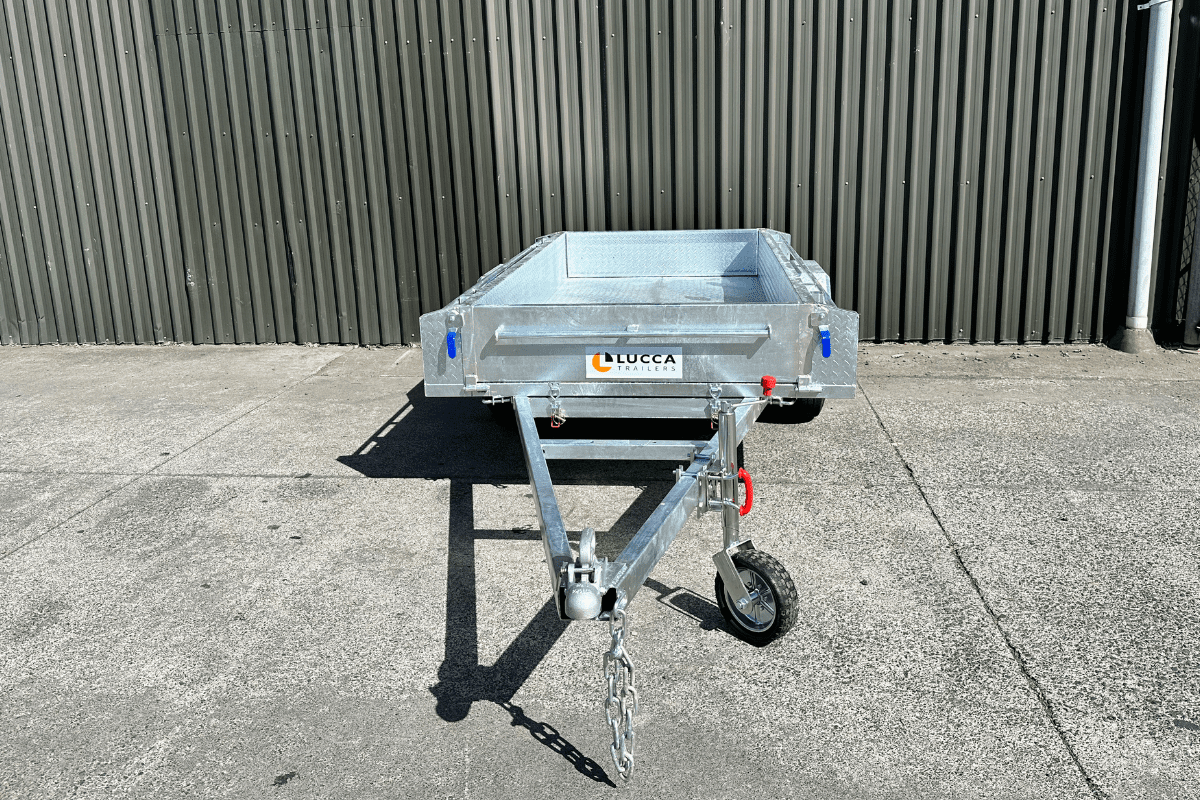

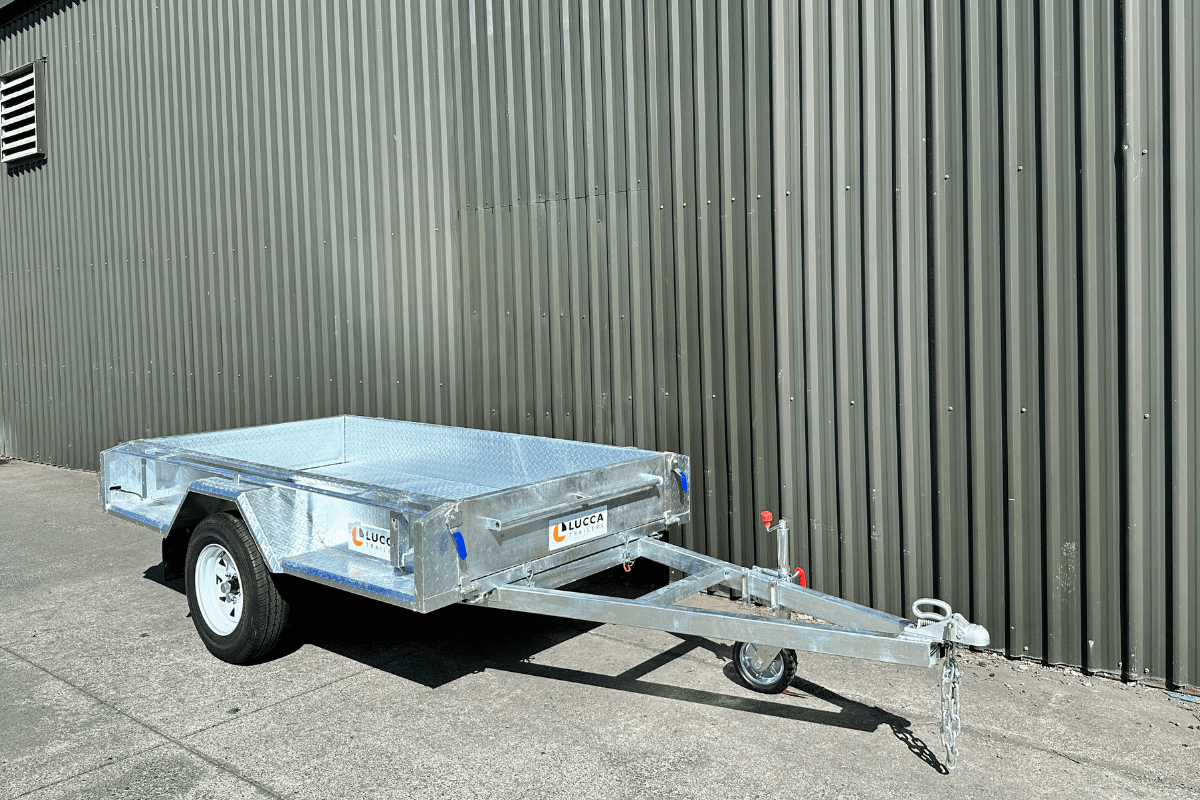

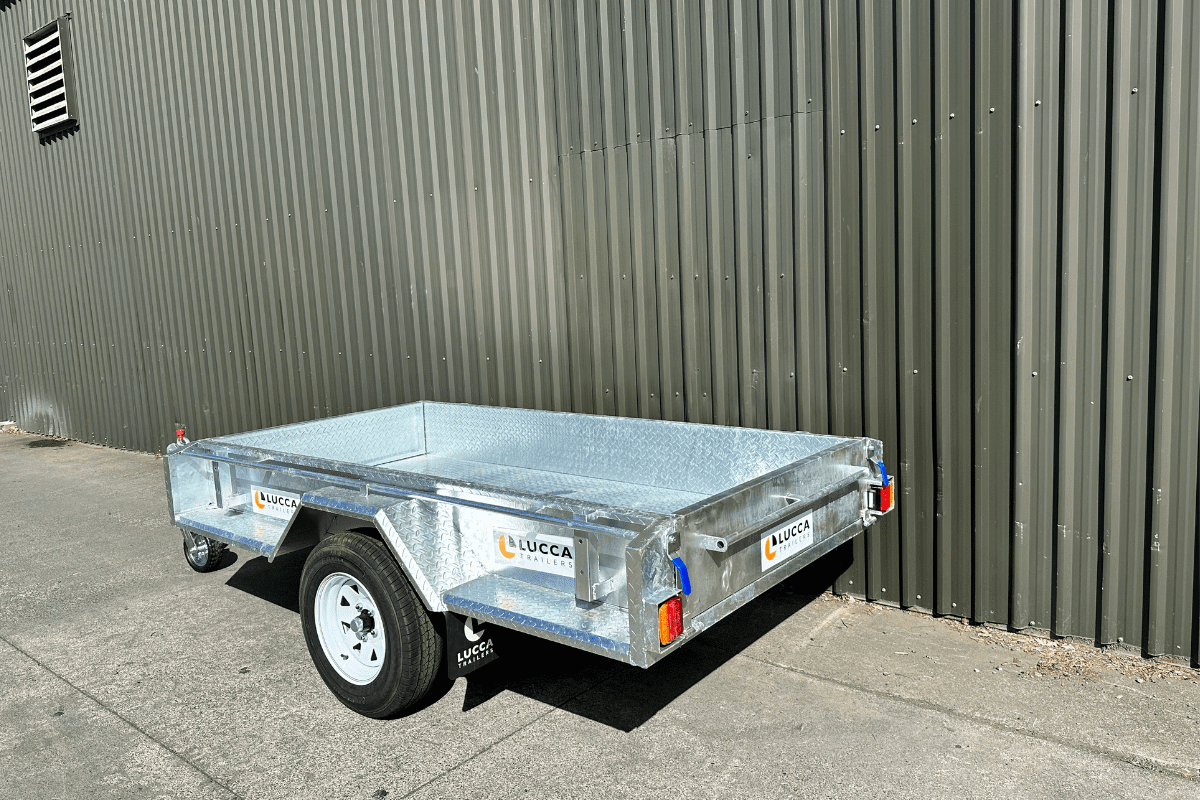

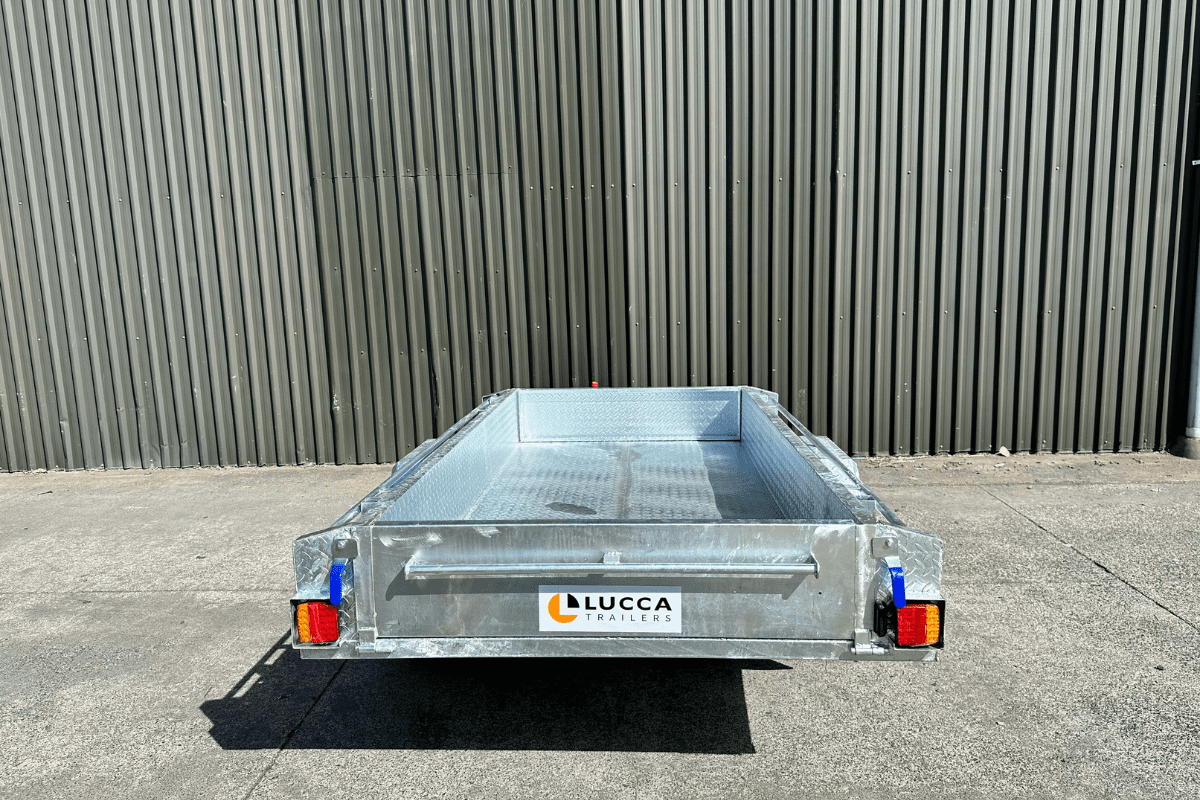

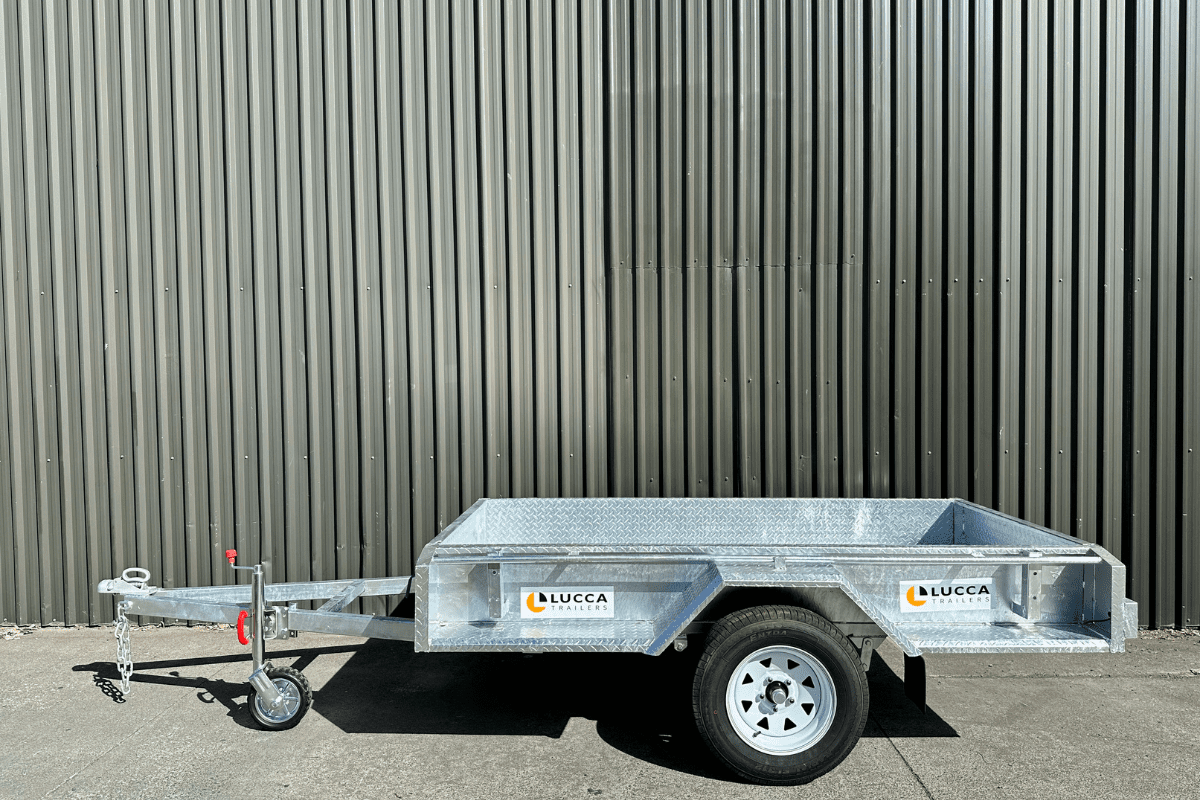

The Mintie - Single axle 8ft x 4ft tipping trailer.

A solid, robust, reliable trailer with a bit of extra length.

Easy to use and easy to park.

Add a cage or an H Frame for extra versatility. Add an additional tow ball for a bike rack addition.

This strong and versatile trailer will make any trailer trip an easy one!

This has a few slight design differences to the Jet Plane 8ft x 4ft single axle.

Assembled with care by our team in NZ. Perfect for transporting various items: furniture shifts, garden clearance, tip trips, sports gear etc. It's on the higher end of payload capacity that is currently available on the market.

Fully welded (not bolted together). Its 2.5mm checker plate floor and sides with wraps on the sides give it additional strength.

The cage gate and the forward and rear tailgates are easily removable to give more usage flexibility. Tailgates can be lowered with the cage still fitted. This model has lights on the outer edges, allowing longer loads and trips with front and rear tailgates lowered.

Features:
- Heavy-duty payload capacity of 850kg – pile it up high and heavy!
- Full tilt model for ease of unloading
- Multi-latches for extra safety
- Side running boards and mudguards that you can stand on when loading
- Side and rear pipes for tie-downs
- 14" Wheels for increased stability when towing and additional payload.

Make it versatile. Add these on as Extras:
- Removable cage (900mm) with rear swinging gate for loading.
- Removable tarpaulin frame
- Additional tow ball for trailers for bike rack addition
(See Extras for add-on pricing and information).

  • Lead time: Immediate
  • Pick-up locations available
  • Finance available
  • Assembled in NZ

Order Now:

9 in stock

9 in stock

Registration and 3 year WOF

Trailer Cage 8 x 4ft / 900mm

Trailer Cage 8 x 4ft / 600mm

Out of stock

Tarpaulin/Trailer Cover 8 x 4 trailer 900mm

Spare wheel

H Frames 4ft 900mm

Ramp 4 foot wide

Toolbox

Towbar Trailer Lock

Tarp Installation

You can choose your pickup location at the checkout.

Quantity:

Technical Specifications

Axle Single axle
Overall Dimensions (mm) 4235mm x 1700mm
Box Size (Internal) 8ft by 4ft (2438mm x 1219mm)
Draw bar length from the base of the tail gate 1620mm
Full Welded Chasis
Tare Weight (Empty Trailer Weight) 300kg
Payload Capacity (Maximum Load Limit) 850kg
ATM Weight 1150kg
Floor and Sides Construction 2.5mm checker steel plate with Standard 300mm Depth sides
Trailer Box Side Height 300mm
Frame
Steel Thickness 2.5mm
Surface Finish Hot-dipped galvanised Steel
Tow Ball Coupler NZ and Australian standard 1 7/8"
50mm Coupling Can be supplied at extra cost
Safety Chains Standard 10cm
Dual Coupling Can be supplied at extra cost
Wheels & Tyres 165/70R-14 inch Tyre, Commercial
Braked No
Mudguards Yes
Lights LED Lights
Reflectors Back of trailer, red and orange
Electrical Details Electrical plug standard 7 pin plug
Jockey Wheel Included Yes
Tie Downs Yes
H Frame Holders Yes
Hinged / Removable Tail Gates Yes
Leaf Springs 6 inch Slipper Leaf Spring
Axle Style Solid round axle
Full Welded Chassis

Other

Bearing Savers NZ standard bearings
Hydraulic Power Pack
Battery with solar charger or Anderson plug wired to car
Other features / details
Lead Time (when not in stock at location)

East Tamaki: Immediate
Hamilton, Riverhead: 24 hours
Kerikeri, Whangarei: 48 hours
Taupo, Tauranga, Whakatake: By Arrangement

Other Add-Ons Available

  • Mower bucket
  • Additional bike tow bar
  • Sliding doors

Warranty

Warranty Full 3 year warranty

Stock Locations

East Tamaki Y
Riverhead Y
Whangarei Y
Kerikeri Y
Hamilton Y
Whakatane pick up orders only

Delivery Fee

East Tamaki None. Call us to arrange.
Pukekohe None. Call us to arrange.
New Plymouth $350
Hawkes Bay $300
Riverhead None. Call us to arrange.
Whangarei $200
Kerikeri $250
Hamilton $100
Whakatane $200
Tauranga $176
Taupo $176
Rotorua $175
